Tengzhou Jianda CNC Machine Co., Ltd.

China Manufacturer with main products: CNC Router, CNC Engraving Machine, Woodworking Machine, Laser Engraving Cutting Machine, Stone Engraving Machine, Metal Mould Engraving...

6th
Home  >Products Catalog > Advertising CNC Router > TZJD-6090B CNC Router machine About Advertisement

TZJD-6090B CNC Router machine About Advertisement SafeBuy Supplier Member

FOB Price: 1,123.00 - 3,211.00 USD/Set
Supply Ability: 200 Set/Sets per Month
Shipping: 4 working-days Delivery time, FOBQingdao
Payment Terms: T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: fumigating wooden case

Quick Details

  • Brand Name: TZJD
  • Model Number: 6090B
  • Color: White Blue
  • Working area: 600mm*900mm*100mm
  • Working voltage: single-phase 110v/220v, 50hz/60hz
  • Structure: Imported German ballscrew
  • Spindle: 1.5kw, 2.2kw, 3kw water-cooling
  • Drive motor: Stepper
  • Guide rail: Taiwan HIWIN Square guide way and slider
  • Working table: T-Slot
  • Control system: Ncstudio controller, DSP controller, Syntec
  • Software: Original Type3 with dongle-key

Specifications

TZJD-6090B CNC Router machine About Advertisment

1-
Specification Parameter
Description Parameter
TZJD-6090B
Working Area (X*Y*Zmm) 600mm*900mm*100mm
Max Engraving Speed  6000mm/min
Frame Cast Aluminum
XYZ travelling positioning accuracy  ±0.03/300mm
XYZ repositioning accuracy ±0.02mm
Spindle power(KW) /2.2KW/3KW
Max. Power Consumption(Without spindle) 1.2KW
Spindle Speed      6000-24000rpm
Resolution 0.005mm
Repeatability 0.01mm
Voltage AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)
Drive motor Stepper(option:Servo motor)
Working table T-Slot with PVC board
Working Dictate         G Code*.u00*.mmg*.plt
Operating system Nc-studio/DSP optional
Software environment Windows98/2000/xp
Interface USB
Flash memory 128M(U Disk)
Software Compatability Type3,,Ucancam,Artcam Software)
Running Environemt Temperature: 0℃45℃
Relative humidity: 30%75%
Machine available

Dust collector system, spindle cover, Japan Panasonic

Servo motor, vacuum absorption table & vacuum pump

system, Auto-oiling system, Tool-sensor,



2-
Product Features

1. German Ball Screw Nut and imported Guide; guarantee the long-life using.

2. Broken-point memory ensures the continuity of work when inciddent happens.

3, Gantry movement ensures the undeformation after a long-time work as well as a higher accuracy.

4. Solid gantry, well structure of lathe bed, stable lathe table.

5. High power cutting of Desktop CNC Router ensures the smoothness and clearness of the processed metal.

6. High-speed spindle with water cooling system works vigorously with low noise and guarantees long time mass processing.

7. Aluminum decorated appearance, beautiful shape and magnificent looking.

8. Wide range of use: Architecture model, school, government departments and enterprises.

9. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.



3-Applicable industry

can be used for advertisement engraving and cutting, handicraft industry, various types of man-made plate,

LED, Neon literlly cutting groove, stone processing, mold manufacturing, wood processing, craft manufacturing,

light box cutting, building model cutting, indoor decoration cutting, light equipment mold processing,

sign and mark manufacturing, acrylic board processing,PCB circult board engraving.



4-Applicable material

Acryl ,wood, Aluminum, 3D technology, copper, PVC board, MDF board, PCB Board, breastplate, indoor & outdoor decoration, etc.

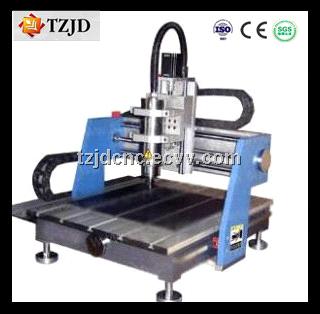

5- Machine picture
ecaltvv

6- Sample picture

ecaltvv ecaltvv
ecaltvv ecaltvvecaltvv
