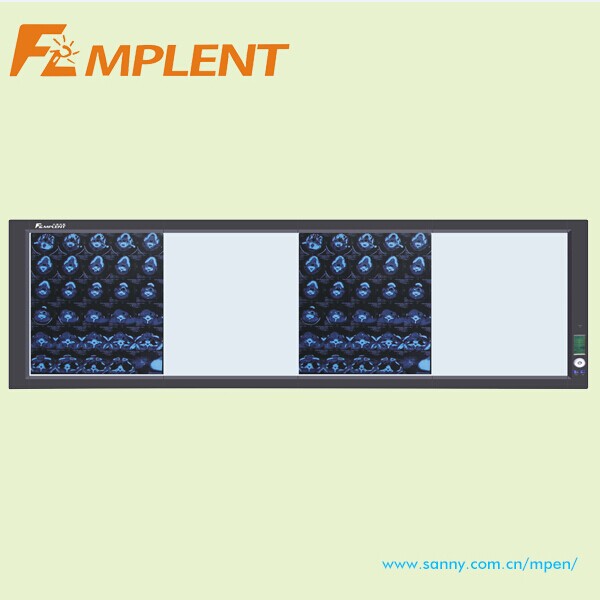

Negatoscope X Ray Film Viewer X Ray View Box

FOB Price:	540.00 USD/Unit
Supply Ability:	5,000 Unit/Units per Year
Shipping:	2 weeks
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Lovego NEW generation 5LPM portable oxygen conc...

Price:1,200.00 USD/Unit

Min. Order:2 Units
Mammography

Price:3100.00-32000.00 USD/Set

Min. Order:1 Set
Medical Blue Sensitive X-ray Film

Price:

Min. Order:1 Unit
Round Bar Straightening Roller Ray Machine

Price:

Min. Order:
High Frequency And Constant Voltage x-Ray Unit

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China

Quick Details

Brand Name: Mplent
Model Number: ZG-4

Specifications

A, Full Digital Control
Compared to the analog control, it works more stable, flexible, accuracy, easier to use as well as longer lifespan.

B, Super Bright LED Light Source with Quality Lead-frame and Big-size Epitaxial Chips
Direct-lit cold light illuminator, high density SMD LED matrix(572 pc/bank), the luminance up to 6000 cd/m2, and uniformity up to 90%, ensured the high brightness and great uniformity, guaranteed the accurate observation.

C, Imported Acrylic View Panel
Better light transmission and scattering diffusion, durable, never out of shape or discolored.

D, Eye Protective Feature
The color temperature is up to 8000K, no harmful to human eyes, suit for long time observation.

E, PWM Low-Voltage Digital Continuous Dimming System
Luminance can be modulated range from 1% to 100% continuously.

F, LED Constant Current Drive Power
Guaranteed the LED light works consistently, and makes the viewer longer lifespan, energy saving and safety to users.

G, Film Sensor
The panel will light up automatically when film inserted and off when moved away, and the panels in each bank works separately, can avoid the light influence from other panels while observing.

H, Separated Control
Each bank can light up and dimming separately, every bank can be worked as a single viewer.

I, Improved Fixture
Instead of the clip+ball fixture, a new needle roller fixture was adopted, it is more durable and easier to use.

Size(L×W×H mm)

475×500×38

Visual Area(L×W mm)

360×422

Power(W)

35W

LED Specification & Lifespan

Super Bright SMD LED; CCT ≥ 8000K;Lifespan ≥ 100000 h

Adaptor

Global Adaptive Power;AC90V-240V 50/60Hz

View Panel Luminance

PWM Dimming System,can be modulated range from 1% to 100% continuously,Average Luminance :0~6000cd/ m2

Uniformity

≥90%

Scattering Diffusion

>0.9

Fixture

Needle Roller Fixture

Installation

Wall mounting, Bracket mounting

Application Scope

General Film,Digital Film,Breast Mammography Film

Application Condition

Room Average Illuminance ≤ 100 lux
