Hard Rig Machinary Co., Ltd.
China Manufacturer with main products: Exploration Drilling Rigs, Drilling Equipment |

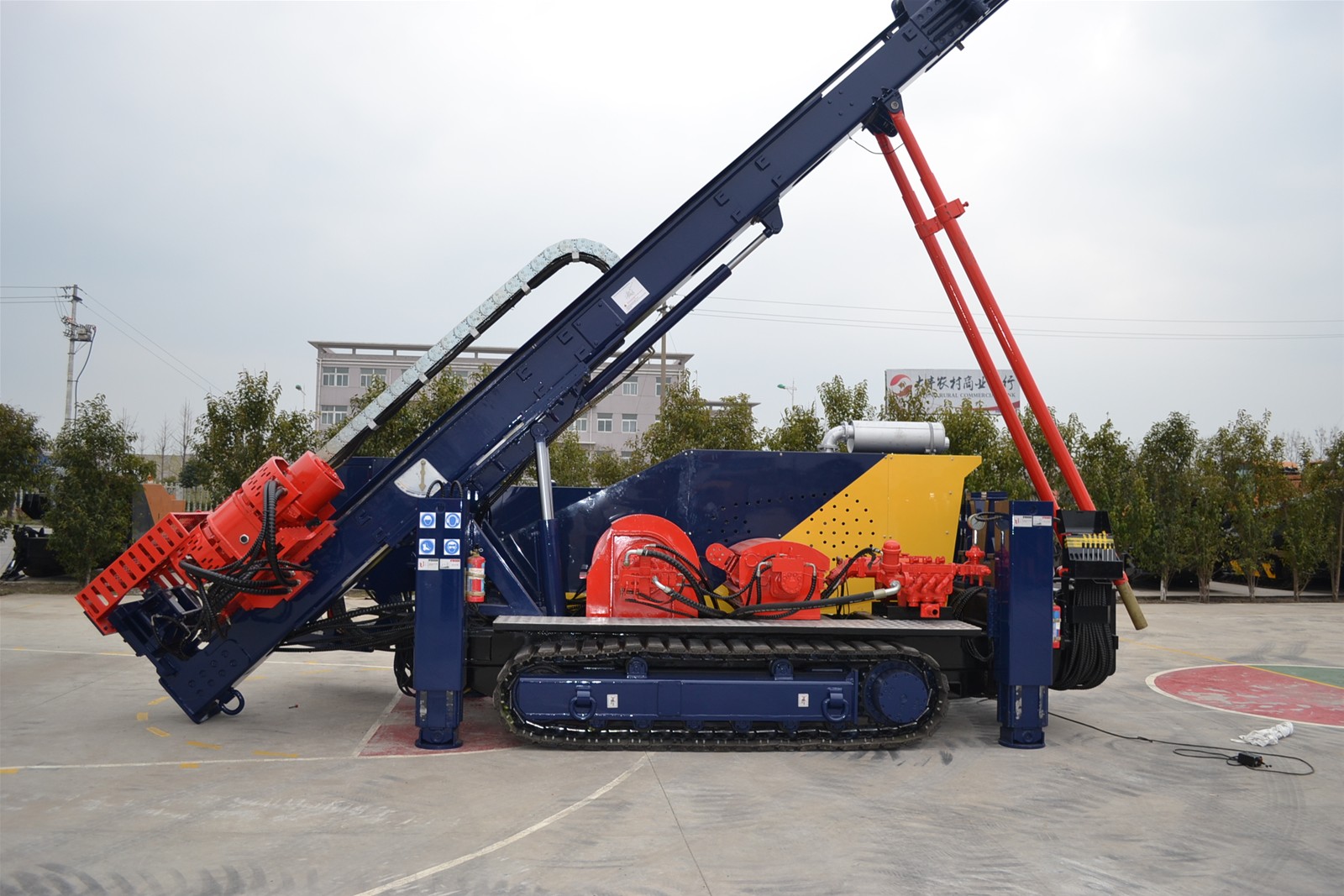

HD1800 diamond drill rig
| FOB Price: | 250,000.00 - 280,000.00 USD/Set |
|---|---|
| Supply Ability: | 3 Set/Sets per Quarter |
| Shipping: | 3 month lead time for shipping while contract confirmed |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | rigs in 40 feet containers with auxi parts in 2 wood crates |
Quick Details
- Condition: New
- Type: Core Drilling Rig
- Power Type: Diesel
- Brand Name: Hard Rig
- Model Number: HD1800
- Usage: Ore
- Power(W): 179kw
- Dimension(L*W*H): L6600 W2200 H2623
- Weight: 17000kg
- Warranty: 12 months ex work
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications
With the best and mostly advanced fabrication technichs in China, the Track Mounted Full Hydraulic HD-1800 has been designed and manufactured specifically for diamond coring in medium to deep drilling surface exploration applications where site access limits the use of larger drills. The HD-1800's compact design combined with its self propelled crawler track drive system makes it an ideal choice for drilling operations in jungle or mountain terrain where most of the heavy trucks or other vehicles are difficult to pass.
European manufactured hydraulic components as pumps, motors, hoses and fittings have been merticulously selected and utilized by our talented engineering team for optimum efficiency, and comparing with the other rigs brands of the same level, HD-1800's hydraulic system is able to generate the highest system pressure and pruduces the highest rotation torque.Combined with its heavy duty mast, sub structure and high output diesel power pack ensures outstanding drilling performance and reliability.
Safety is recognized as a key priority at HD series, our standard offering includes purpose designed rod safety spin guards, main winch and wireline winch guards, fire extinguishers, emergency stop buttons at each corner of the rig and platforms etc.
The HD-1800 can easily be loaded on heavy trucks with its 1.4m high jack legs and transported in 40ft sea containers.
|
Power Unit |
|||
|
Manufacturer |
Cummins |
||
|
Model |
Cummins 6CTA8.3 |
||
|
Engine power @ 2200 RPM |
179 kW |
240 hp |
|
|
Diesel type |
Turbo charged |
||
|
Rotation head |
|||
|
Pull force |
284 kN |
64,000 lbf |
|
|
Feed force |
134 kN |
30,125 lbf |
|
|
Max torque |
6650 Nm |
4926 ft/lbf |
|
|
Max rotation, rpm |
1200 rpm |
||
|
Feed stroke |
4,800 mm |
189 in |
|
|
Max inside diameter |
114 mm |
4.5 in |
|
|
Hydraulic system |
|||
|
Working pressure |
32 Mpa |
4640 psi |
|
|
Cooling |
Air cooled |
||
|
Mud Pump |
|||
|
Max flow |
240L/m |
63gpm |
|
|
Max pressure |
8 Mpa |
1000 psi |
|
|
Mast |
|||
|
2 sections, hydraulic powered life/down, with mast dump |
|||
|
Length |
11.76m |
38.6 ft |
|
|
Drilling angle |
45° to 90° |
||
|
Mast dump |
1200 mm |
47 in |
|
|
Rod pulling length |
9 m |
29.5 ft |
|
|
Wireline winch |
|||
|
Max pull |
16 kN |
3600 lbf |
|
|
Pulling speed |
204.5 m/min |
671 ft/min |
|
|
Rope diameter / length |
6 mm / 2000 m |
0.24 in / 6562 ft |
|
|
Main Hoist |
|||
|
Max pull, bare drum |
200 kN |
44,960 lbf |
|
|
Pulling speed |
30.2 m/min |
99 ft/min |
|
|
Rope diameter / length |
26 mm / 55 m |
1.02 in / 180 ft |
|
|
Rod clamp |
|||
|
Jaw sizes |
B, N, H, P |
||
|
Track |
|||
|
Track pad (rubber) pressure |
0.14 Mpa |
20 psi |
|
|
Max climbing angle |
30° |
||
|
Jack legs |
|||
|
Max lifting clearance ( from ground to track ) |
1400mm |
4.6ft |
|
|
Max width for rear legs |
3200mm |
10.5ft |
|
|
Weight |
|||
|
Total weight |
17,000 kg |
37,400 lb |
|
|
Shipping dimension |
|||
|
6600 x 2200 x 2623 mm |
260 x 86.6 x 103.3 in |
||
|
Depth capacity* |
|||
|
B |
2000 m |
6560 ft |
|
|
N |
1800 m |
5906 ft |
|
|
H |
1200 m |
3937 ft |
|
|
P |
800 m |
2625 ft |
|
