1kg-2kg-5kg-10kg gold/copper melting induction melting machine
| FOB Price: | 500.00 - 3,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Month |
| Shipping: | 5-7 days after down payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | one wooden case |
Quick Details
- Brand Name: LIPAI
- Model Number: WH-VI-30
Specifications

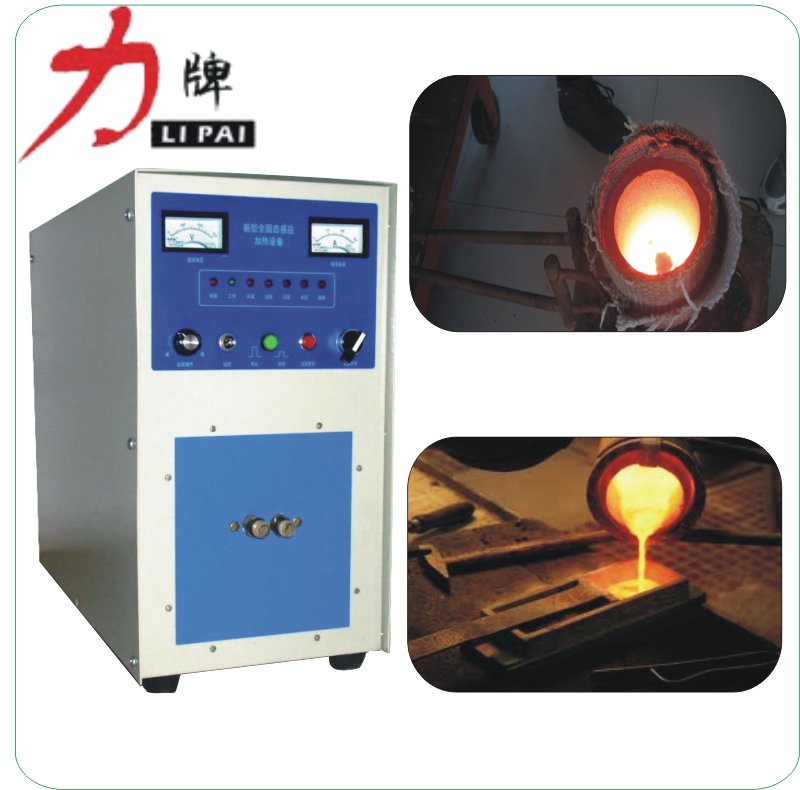

1kg-2kg-5kg-10kg gold/copper induction melting machine
Composition of WH-VI-30 induction melting machine
1.One 30 kw induction hating generator
2.One induction coils
3.One graphite crucible
4.One foot pedal
Our user: Newzealand cusotmer melting 5kgs gold
Features of WH-VI-30 induction melting machine:
1. Advanced IGBT technology from Germany
2. Power adjustable: 3-30 KW
3. Timer (optional)
4. Water cooling induction melting machine
5. Complete functions: over current,over voltage,lack of phase,lack of water etc. over ten alarm lamps, to prevent machine from damaged .
6. Induction coils can be tailor-made, according to size of graphite curcible.
| Model | WH-VI-30 |
| Work power |
3 phase 380V/50-60HZ or 3 PHASE 220V/50-60HZ |
| Max. input current | 45 A |
| Max. output power | 30 KW ( 3-30 KW ) |
| Oscillation frequency | 10-60 KHZ |
| Effciency | 100% |
| Continuous load rate | 100% |
| Cooling water pressure | 0.1-0.3mpa |
| Cooling water flow | 15L/min(0.1mpa) |
| Size( Length*width*Height) | 580*280*510mm |
| Weight | 45kgs+/-5% |
| Color | Blue/white |
| Brand | LIPAI |
| Packing size | 750*400*735 |
| Cusomter cases | USA, ECUADOR ,UK, RUSSIA,NEWZEALAND etc. |
Packing: one wooden cases (plywood) '
Total volume: 0.35 CBM. Gross weight: 65-7kgs
Packing material: add foam wraping the machine for shock proof, plastic film for waterproof
