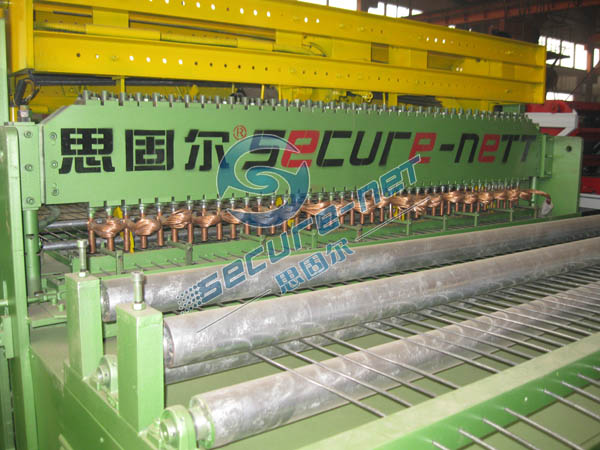

Mechanical Mesh Welding Machine(Equipment)

FOB Price:	10,000.00 - 15,000.00 USD/Set
Supply Ability:	200 Set/Sets per Month
Shipping:	25days after received the 30% downpayment
Payment Terms:	L/C, D/P

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	platics bags and wooden boxes

Quick Details

Condition: New
Brand Name: SECURE-NETT
Model Number: SK-M-2500
Usage: wire mesh for building roofs
Voltage: 380v 50hz
Dimensions: 2.8x2.7x1.7
Weight: 3TON
Certification: ISO9001:2008
After-sales Service Provided: Engineers available to service machinery overseas
wire diameter: 2.5-5.0mm
Line Wire Type: Wire Coiling
Welding Aperture: 50x50-200x200mm
Cross Wire Type: Straight Cut Wire
Welding Width: 2500mm
Power Supply: AC380V 50HZ
Welding Speed: 45 times/min
Rated Power: 800KVA

Specifications

Mechanical Mesh Welding Machine(Equipment)
1.This machine adopts electrical synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit.This operation is accurate,it is stable,firm welded spot is firm and without weled tracks.
2.Cross wires is pre-straight and pre-cut wire.
3.Line wire are fed from coils.
4..Elastic tension link pushing system,the mesh hole and mesh aperture can adjust randomly.
5.This operation is accurate, it has stable function, firm welded point and without welded tracks, not only welding speed is fast but also it is easy to to learn and operate.
6.The finished product can be in coil or in panel.
