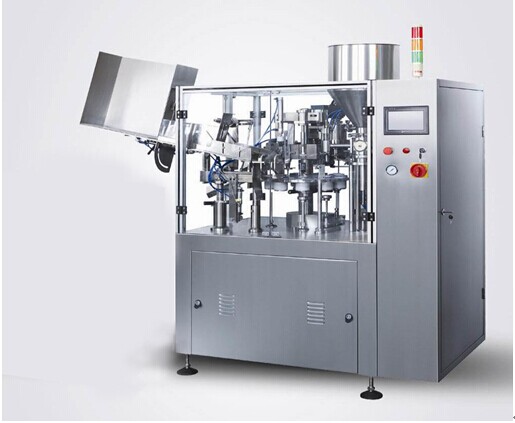

Filling and sealing machine

FOB Price:	20,000.00 - 22,000.00 USD/Set
Supply Ability:	10 Set/Sets per Month
Shipping:	By sea
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Ampoule Filling and Sealing Machine, ABF-8

Price:

Min. Order:1 Set
300W Hand Pressing Film Sealing Machine Packag...

Price:1.00-1,000.00 USD/Set

Min. Order:1 Set
Sealing Machine for Sterilization (MT-SM-I)

Price:

Min. Order:
High Quality & Hot Sales QL-5545 Automatic ...

Price:1.00-10,000.00 USD/Set

Min. Order:1 Set
portable impulse sealer

Price:

Min. Order:
Full Automatic AIR VALVE Sealing Machine for Du...

Price:1000.00 USD/Set

Min. Order:1 Set
Sealing Machine

Price:500.00-1,000.00 USD/Short Ton

Min. Order:1 Short Ton

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	with stretch film and bubble film

Quick Details

Condition: New
Application: Food,Beverage,Commodity,Medical,Chemical
Packaging Type: Plastic,Laminated tube,AUL tube and plum bum tube
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 1.1KW
Power: 220V
Brand Name: Dongya
Model Number: DY-R600
Dimension(L*W*H): 1900*950*1900
Weight: 850KG
After-sales Service Provided: Engineers available to service machinery overseas

Specifications

Feature:

1, With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding ,sealing requirements of plum bum tube ,ALU tube ,plastic tube and laminated tubes .It is a multi-purpose machine.
2, Tube feeding ,eye marking ,tube interior cleaning (optional).material filling sealing (tail folding),batch number printing ,finished products discharging can be performed automatically (the whole procedure).
3, Servo control makes it precise and convenient to adjust the filling amount by touch screen.
4, According to the different length of the tube ,height of tube chamber can be adjusted easily by motor. With external reversal feeding system ,makes tube charging more convenient and tidy.
5, The mechanical linkage photo sensor precision tolerance is less than 0.2mm.The chromatic aberration scope between tube and eye mark is reduced.
6, Photo-electronic ,electric, pneumatic integrative control is applied with the machine .No tube ,no filling .It gives an alarm when low pressure occurs .The machine stops automatically if tube error or open the safety door.
7, Three-layer jacket instant heater with inside air heating ,It won't damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect

Main Technical Parameter

Tube Material	Plastic, Laminated tube, AUL tube and plum bum tube
Filling range	5ml-250ml/PCS(Adjustable)
Filling accurancay	≤±1%
Producing speed	40 PCS/min
Diameter of flexble tube	ф10-ф50mm
Length of flexble tuble	220mm (Max)
Power supply	380v/220v(Choice)
Working pressure	0.55-0.65Mpa
Suisted Electric Machine	1.1kw
Heat seal power	3.0kw
Overall Dimension	2000(L)×950(W)×1900(H)mm
Machine weight	850kg
