| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | plywood |
Quick Details
- Brand Name: RTK
- Model Number: Y Strainer Filter
- Power: Electric
- Standard or Nonstandard: Standard
Specifications
Specifications

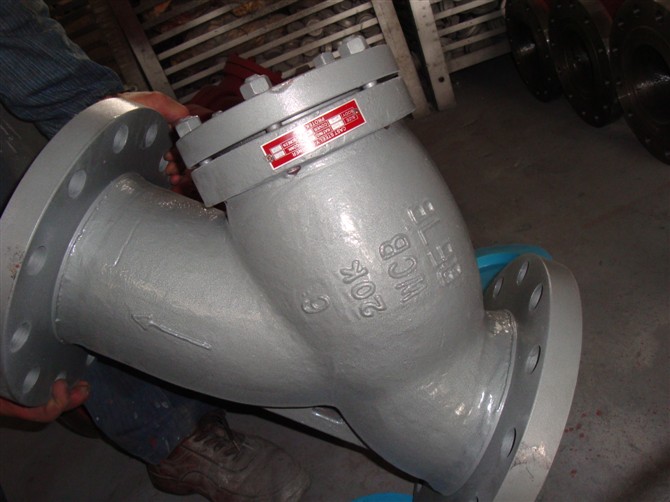

Flange Y Strainer
Flange Y Strainer
2..Face to Face: ANSI B16.10/JIS B2002
3.End flange: ANSI B16.5/JIS B2239
4.Y type sturcture
5.Inspection & Test: API6D or API598
1.Material: CF8(304),CF8M(316),WCB
2.Manufacture:ANSI B 16.34,AP I6D
3.Bolted Bonnet
4.Pressure:150-600LB
Wire mesh flanged y metal strainer filter
| FIG NO. | 70FF |
| Price Range | 17$~800$ |
| Pressure and Flanged Ends | |
| Working Pressure | 21 Bar/300PSI |
| Flanged Ends | ANSI B16.1 Class125/150/250, |
| EN1092-2 PN10/PN16/PN25 | |
| BS10 Table D/Table E | |
| Material List | ||
| COMPONENT | MATERIAL | SPECIFICATION |
| Body | Ductile Iron | A536 65-45-12 |
| Cover | Ductile Iron | A536 65-45-12 |
| Screen | Stainless Steel | AISI 304 |
| Gasket | EPDM | |
| Plug | Carbon Steel | |
|
|
|
|
Nominal Diameter: |
DN40-DN600 |
|
Nominal Pressure: |
PN10/PN16 |
|
Operation Temperature: |
-10°C~150°C |
|
Suitable Medium: |
Water,Sewage,Seawater,Gas,Food,Oils,etc. |
Cast Iron Y Type Strainer
|
Standard: |
|
|
Structural Length: |
DIN3202 F1 |
|
Face to face Standard: |
GB/T9113.1-2000,EN1092-2 |
|
Type of connection: |
Flange Type |
