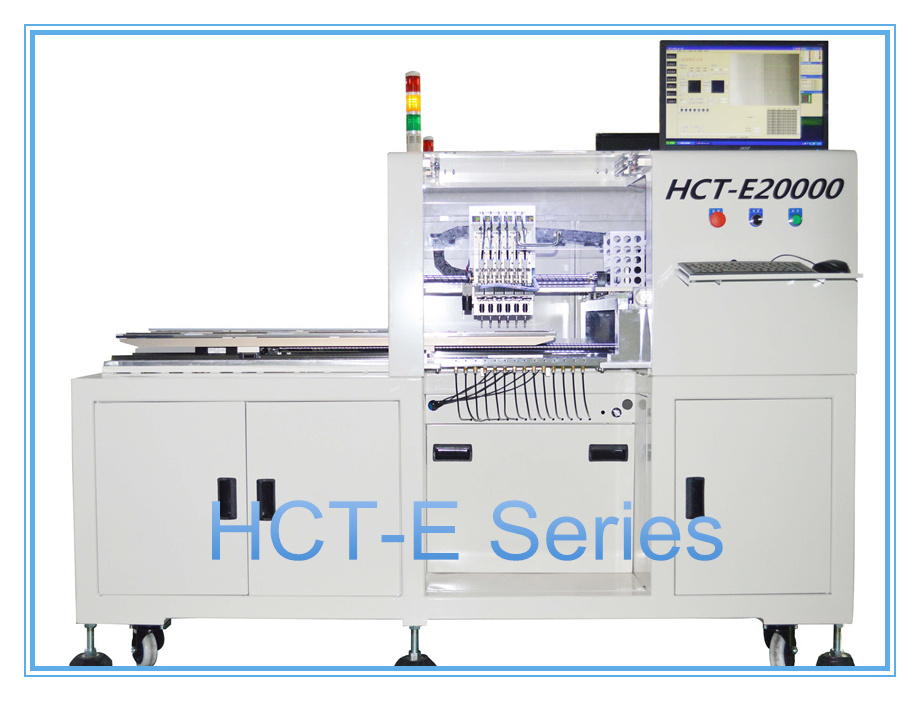

HCT-E20000 High Quality Flexible LED Chip Mounter
| FOB Price: | 27,000.00 - 28,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Month |
| Shipping: | SHENZHEN |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standard Carton Package |
Quick Details
- Brand Name: HCT
- Model Number: HCT-E20000
Specifications
HCT-E20000 is a semi-automatic LED Chip Mounter with BALL SCREW DRIVING especially developed for small and medium LED lighting manufacturing enterprises.
Competitive Advantages of the product
* Optimized pick / place routing design, ensures precision end speed
* Each mounting head has its own Z - direction servo motor, which is designed for vertical motion
* Works with different types of high-precision nozzle
* For various shapes of PCB without clamp assistance, length can reach 1200mm
* Suit for variety of SMD LED components, and high-power LED
* Using imported high precision ball screw, motor, electromagnetic valve, cable, etc., effectively improve the placement accuracy
We are instrumental in providing to our valuable customers excellent quality Semi-auto SMD LED Placement Machine which is available with following specification:
Model#: HCT-E20000
Outline Dimensions: L*W*H 2000*970*1350mm
Total Weight: Approx 850kg
PCB:
PCB Size Max:1200mm X310mm
PCB Thickness: 0.5-3.0mm
PCB Convey Direction: From Left to right
Operation System:
Software: Windows XP
Display: LCD Monitor
Input Device: Mouse & Keyboard
Vision System:
No. of Camera: 7 Sets
Mark Point Recognition Gray scale & Multi - View Shape Recognition & Edge Detection
Positioning Way: MARK by Visual Alignment System
SMD Components: 0402 - 5050 - 7474 (Max Height 6mm)
No. of Placement Head: 6 Nozzles
No. of Feeders: 14 Units (12mm Feeders)
Accuracy: ±0.1mm (chip & IC)
Kinetic Precision: ±0.01mm
Speed: 28000CPH (maximum)
Power Supply: Single phase, AC 220V (±10%), 50Hz
Maximum Power: 1.9 KW
Compressed Air: 0.7MPA
Clients can avail this Semi-auto LED Chip Mounter at industry leading prices from us.
