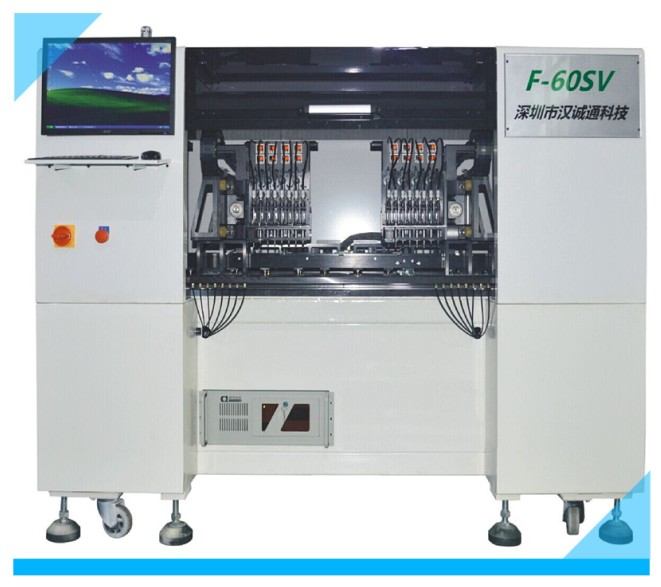

F-60SV Full Automatic High-speed SMD LED Placement Machine

FOB Price:	56,000.00 - 57,000.00 USD/Set
Supply Ability:	30 Set/Sets per Month
Shipping:	SHENZHEN
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard Carton Package

Quick Details

Brand Name: HCT
Model Number: F-60SV

Specifications

F-60SV is a Full Automatic High-speed SMD LED Placement Machine with 16 placement heads especially developed for large LED lighting enterprises.

We are instrumental in providing to our valuable customers excellent quality Automatic SMD LED Placement Machine which is available with following specification:

Competitive Advantages of the product
1. 8 spindles x 2 gantry, totally 16 feeders available
2. Can mount 1200 X 325MM PCB (max), for different PCB , FPC, MCPCB, etc
3. Works with different types of high-precision nozzles: you can replace nozzles manually according to the components size, which is more convenient and effective to shorten the replacement period.
4. Suit for variety of SMD components, 0603-7070MM, optimum speed 45000CPH
5. Using imported well-known brand high precision ball screw, motor, solenoid valve, cable, etc., effectively improve the placement accuracy, stability and service life of machines

Model#: F-60SV
Outline Dimensions: L*W*H 2000*1200*1500mm
Total Weight: Approx 1500kg

PCB:
PCB Size Min: 50mm X50mm
Max: 325mm X1200mm
PCB Thickness: 0.5-3.0mm
PCB Convey Direction: From Left to right

Operation System:
Software: Windows XP
Display: LCD Monitor
Input Device: Mouse & Keyboard

Vision System:
No. of Camera: 17 Sets
Mark Point Recognition: Gray scale & Multi - View Shape Recognition & Edge Detection
Positioning Way: MARK by Visual Alignment System

SMD Components: 0603 - 7474, IC<15mm (Max Height 10mm)
No. of Placement Head: 16 Nozzles
No. of Feeders: 16 Units (8mm Feeders)
Accuracy: ±0.05mm (chip & IC)
Speed: 45000CPH (maximum)

Power Supply: Single phase, AC 220V (±10%), 50Hz
Maximum Power: 3.0 KW
Compressed Air: 0.55MPA

Clients can avail this Automatic SMD LED Placement Machine at industry leading prices from us.
