Home Lighting Control Relay Module 4ch 20Amp /ch DIN-Rail Mount (G4)

Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

China sell OMRON relay H3RN-1,solid state time...

Price:

Min. Order:2 Pieces
Sequencer and Time Delay Relays

Price:1.00-5.00 USD/Piece

Min. Order:500 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: smarthome
Model Number: SB-RLY4c20A-DN

Specifications

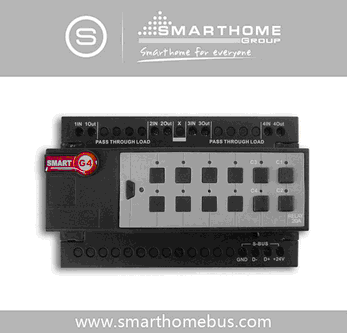

DIN-Rail Mount Switched Pass Through Relay 4ch 20A /per ch. Multi Phase, Multi-Current, Multi voltage. Software Selectable programmable 3 Phase Protective function: Grouping. Work 220/110 VAC, 50-60Hz as well as 1.5-48VDC (Green operated supplied by 24VAC/20mA) Small and elegant with easy labeling space, output status LED indicator, network health, broadcast address button and Momentary channel button. Can be used in any location that require energy saving, intelligent control such as apartment, Villa, Offices, Restaurant, Hotels or factories.

*Can be Manually Programmed by any Electrician on site without need for PC.
** (This is an Advanced 2-way module. Changing load status manually reflect and update on all Connected SW & Devices)

Load Compatibility

? All Types of Lighting
? Water Boilers
? HVAC UNITS
? Water Pumps
? OVENS
? Heavy Motors

TECHNICAL DATA:

Download Datasheet:

http://

Supply
80-240VAC, 50/60Hz 1-3Phase
and Pass through 1.5-48VDC.
power consumption: 20-30mA

Outputs
4 x Isolated &Separated
Switched Pass through outputs
rated at 20A each output ch.

Maximum Total Load
80A total load of all channels

Control IO
3 x Advanced RS485 S-BUS
serial port links (both train &
screw link types)

Upgrade IO
1 x mini USB port (to connect to
special programming board)

User Controls
? front panel override switches,
Includes ON/OFF/AUTO override
switch for each channel
? LED status indicator/channel
? Diagnostic LED+ BROADCAST

Programming
? Manual Ch. Pairing Programming
Each Channel to a Button
on Wall Panels (e.g. DDP, 6B)
? Advanced Software Configuration
& Programming

Compliance
CE Mark Low Voltage
CE Mark EMC

Internal Protection
? Over Load Protection
? Protecting Delay 0-60min
? Startup Delay 0-25 Sec.
? BUS Rv. Polarity Protection
? BUS Short Circuit Protection

Preset and Scenes
4X2 Sequence Mode Logics.

Installation
? 35mm DIN-Rail Mount Ready
? Wall Mount Ready (8P)

SBUS DC Supply
24VDC with flexible tolerance
between 12-32VDC. Flexible
ability to add power supply as
to be needed any where

Supply Terminals
4 each is good for 2 x 2.5mm2 or
1 x 4mm2 max conductor size

Output Terminals
4 each is good for 2 x 2.5mm2 or
1 x 4mm2 max conductor size

Operating Environment
0o to 45oC ambient temperature
10% to 93% RH

Enclosure & Size
Polycarbonate, DIN-rail (8 Unit)

Dimensions & Weight
W 91mm x L 145mm x H 75mm
Packed weight 0.5kg
