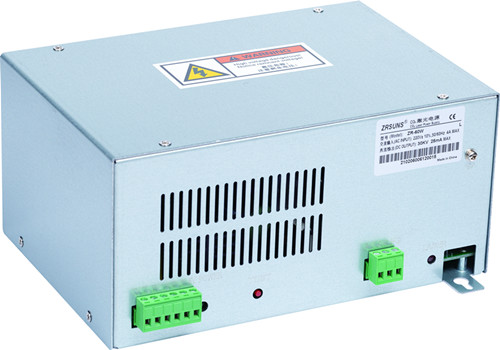

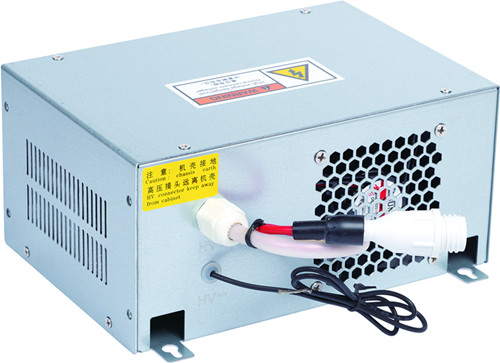

60W CO2 Laser Tube DriverEngraving Power Supply & Power Device

Supply Ability:	4,000 Set(s) per Month
Shipping:	1-2 working days after payment is received
Payment Terms:	T/T, Western Union, MoneyGram

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	carton box and foam

Quick Details

Output Current: 2.2A
Output Power: 60W laser
Output Voltage: 25kv
Input Voltage: 220v
Brand Name: ZRsuns
Model Number: zr-60w co2 laser power supply
Condition: New
Laser Type: CO2
CNC or Not: Yes
Cooling Mode: Air Cooling
Applicable Material: Acrylic,Crytal,Leather,MDF,Paper,plastic,Plywood,Rubber,Wood,Other,
Graphic Format Supported: AI
Brand Name: zrsuns
Model Number: ZR-60W CO2 laser tube driver, 60W laser engraving power supply
Certification: CE

Specifications

ZR-60W CO2 POWER SOURCE

Feature:

1.the 60W laser power supply has excellent protection function. the carbon dioxide laser power supply has open circuit protection, which make the 220V input laser power supply short-term work in the open circuit status which avoid the laser tube burst due to the damage caused by HV laser power supply. In this way it greatly enhancing the 60W laser power supply's service time.

2.the HV laser power supply has the protection switch. Laser power control is simple, it can use 0 - 5V analog signal or PWM (pulse width modulation) signal to adjust and control laser power's output.

3. the 220V input laser power supply's control is easy and simple. It adopts high or low level control, the TTL-level control makes laser beam's output start and stop quickly.

4.the HV laser power supply has stable laser output. Each 60W laser power supply have been much more rigorous testing procedures, under full load high temperature (52~55 degrees Celsius) 24 hours of aging to ensure high stability of each carbon dioxide laser power supply.

5. this 220V inpuit laser power supply's main advantage is high frequency,quick response speed, less volume, less weight, easy operation with complete protecting function.

6.this ZR-60W CO2 laser power supply uses ordinary H/L/P/G/IN/5V ports to accept laser power's control signal and galvanized steel case.

7. the carbon dioxide laser power supply has LCD display module: (optional) .Because of it, it do not need to open the outside case. Operator can simply find ordinary code faults and output current at LCD display screen of 220V input laser power supply and easy remove the trouble. Also the output current can be adjusted by potentiometer on the LCD module

8. this.60W laser power supply uses imported USA,Japan,German,France and Taiwan's high quality components for major parts to avoid the error in future and strengthen lifetime. The carbon dioxide laser power supply can be widely used to drive 1200mm or 1250mm 60W CO2 laser tube made by different factories.

Specification:

Lnput	Input voltage			AC220V±10% (AC110V specified while order)
	AC frequency			47~440HZ
	Maximum input power			490W
	Maximum input current			2.2A
Output	Maximum output voltage			25KV
	Maximum output current			28mA (depending on the laser tubes of different manufacturers)
Efficiency				More than 90% (Full load)
Response speed				Not more than 1ms
Control lnterace				TTL multilevel switching control,effective level can be high and low selection (see control wining diagram)
Insulation		Lnput-output		AC 1500V 1 minutes not more than 10mA
		Lnput-shell		AC 1500V 1 minutes not more than10mA
		Output-shell		Connection
Open Circuit Protection				Can be short circuit (requires a good grounding shell,while avoiding the positive electrode and the shell between the arc)
Environmental Requested			Working temperature	-10℃~50℃
			Storage of temperature	-20℃~75℃
			Relative Humidity	Maximum 85%RH (non-condensing)
			Altitude	100,000 feet of work 200,000 feet of storage,dose not work
Cooling methods				Forced air cooling (fan cooling)
Dimensions (LxWxH)				210mmx145mmx102mm
