Home  >Products Catalog > LED Module > Waterproof Injection SMD5630 LED Module (5630-4)

Waterproof Injection SMD5630 LED Module (5630-4) SafeBuy Supplier Member

FOB Price: 0.50 - 1.50 USD/Meter
Supply Ability: 1,000,000 Meter/Meters per Month
Shipping: 5 days by DHL,7 days by air,30 days by sea
Payment Terms: L/C, T/T, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Carton

Quick Details

  • Model Number: SW-MZ-4D
  • Chip Material: InGaN
  • Emitting Color: Red yellow blue green white warmwhite
  • Luminous Intensity: 60000MCD
  • Luminous Flux(lm): 200LM
  • Optical Attenuation(%): 3
  • Power: 2W
  • Power Dissipation: 2
  • Viewing Angle(°): -50 - 80
  • Color Rendering Index(Ra): 80
  • Color Temperature: 2700k~12000k,Red yellow blue green white warmwhite RGB
  • Operating Temperature(℃): -30 - 50
  • Storage Temperature(℃): -40 - 60
  • Brand Name: Shengwei
  • Certification: CE,ROHS


Quick Details

  • Type: LED Modules
  • Model Number:PT-MD-5630-4
  • Chip Material: AlGaInP
  • Emitting Color :Cool White
  • Luminous Flux(lm):200
  • Power:2w
  • Viewing Angle:120°
  • Color Rendering Index(Ra):85
  • Operating Temperature:-20 - 40oC
  • Storage Temperature:-20 - 60oC
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Pearlight
  • Certification: CE, RoHS
  • LED quantity:4 pcs
  • Input current:0.12A
  • Input power:2W
  • Power factor:>0.9
  • Luminous intensity:200Lm
  • Wavelength:7000~8000K
  • Weight:13G
  • Dimension package:54.8*32.2*5.9MM
  • IP grade:IP65
  • Material: ABS, AL board, Epoxy Resin

  • Packaging & Delivery

Packaging Details:25pcs/bag 32bags/ctn,7.1kg/ctn Size:300x425x290mm
Delivery    Detail:5-7days for sample order, 7-10days for formal order.
Waterproof Injection 5630 LED Module:
1.CE, RoHS approved
2.Excellent service
3.Warranty:2 years

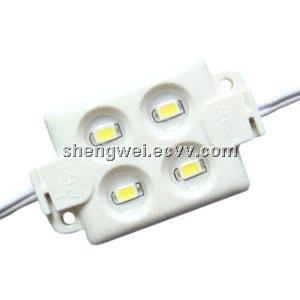

Waterproof Injection SMD5630 LED Module
Product Introduction:
PEARLIGHT LED high power LED Module adopts ABS material as its shell. There is transparent epoxy resin around the lights with good insurability. Comprehensive performance is good with excellent electrical performance, impact strength and wear resistance, chemical resistance, moisture content, shaping and excellent machining technology.
It is completed through injection in one time. It solves the problem that no uniform sealing, dirty shell and LED stand out of the glue etc. It is simple artwork with good appearance and short lead time as well. There are 3M adhesive tape and screws for customers to fix it in easy installation.

Part No. PT-MD-5630-4
LED Quantity 4 Pcs
Input Voltage DC 12V
Input Current 0.12 A
Input Power 2W
Power Factor >0.9
Power Efficiensy >90%
Spot Cutoff ±2m
Luminous Intensity 200
Lamp Flux >80%
Temperature Color 6000±500K(as your requested)
CRI Ra>85
Working Condition Temperature Range -20~40°C
Storage Temperature Range No working -25~60°C
Lifespan >30000Hrs
Raw Material ABS, AL Base, Epoxy Resin
Size 54.8*33.2*5.9MM
Net Weight 13g
IP Grade IP65
Quantity 1/20
