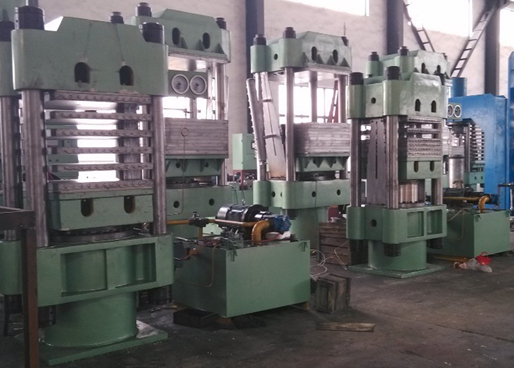

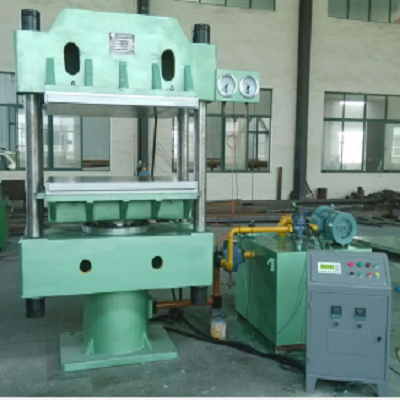

Rubber Hot Plate Curing Vulcaning Press for PVC Flooring Rubber Mat, Rubber Plate, Rubber Flooring, Solid Tir

Shipping:	CIF or FOB shanghai
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	film

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Voltage: as local country request
Brand Name: Geekung
Condition: New
Certification: CE
Power(W): 5.5kw
Model Number: XLBD900x900x1

Specifications

(rubber plate press, rubber hot plate press,rubber curing press,hot press for PVC flooring,rubber plate vulcanizing press,hot press for rubber,plate vulcanizing press for rubber,press machine for kinds of rubber products,like rubber mat,rubber plate,rubber flooring,PVC flooring,solid tire,etc.)

Model        Clamping             Working Plate size      Plates         Max.    Heating        motor
                  force Ton          Pressure      (mm)        distance     Stroke    Power        power
                                          (Mpa)                          (mm)       (mm)    (kw)           (kw)

XLBD-25T        25                16 300x300          100       250      4.8              3
XLBD-50T        50               16 400x400          150      300       9              3
XLBD-63T        63                20 500x500         150      300      12                 4
XLBD-100T       100                 20 800x800         200          300      14                3
XLBD-160T       160                   20 750x850          125      600      16            3
XLBD-200T       200                25 800x800          250      300       20           7.5
XLBD-315T       315                   25 1000x1000         250         300       24            11
XLBD-500T       500                 25 1100x1100         250         350       30            15
XLBD-630T       630                   25 1200x2000         300         350       35              15

rubber hot Plate curing Vulcaning Press for pvc flooring rubber matrubber platerubber flooringsolid tir
