Huayin Technology Co., Ltd.
China Manufacturer with main products: Self-Service Touch Kiosk, Multi-Functional Touch Kiosk, Digital Signage, Outdoor Advertisement Kiosk, Multi-Points Touch Kiosk, Touch Pos... |
14th

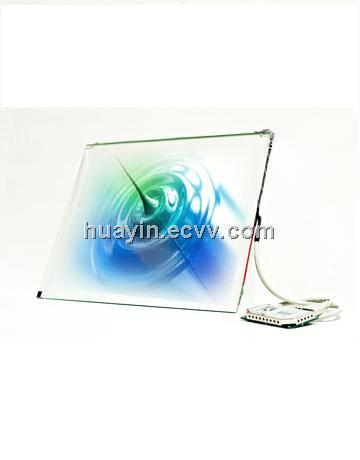

Anti-glare Surface Acoustic Wave Touch Screen
| FOB Price: | 50.00 - 100.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece/Pieces per Month |
| Shipping: | standard |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | industrial carton |
Quick Details
- Model Number: SAW Touch Screen
- Brand Name: HY
- Products Status: Stock
- Application: Laptop
- Response Time: 2ms
- Brightness: 250cd/m
Specifications
Effective reduce the reflective light from the surface of the touch panel to human eyes;Eye protection and ensure a clear display screen.
|
Size(Inch) |
Mode No. |
Thickness (mm) |
Active Area |
Outline Area |
|||
|
L (mm) |
W (mm) |
Diagona (mm) |
L (mm) |
W (mm) |
|||
|
6.4" |
CTA064C-4FG |
3/4/6 |
130 |
77 |
162.2 |
156 |
123 |
|
7" |
CTA070C-4FG |
3/4/6 |
153 |
92 |
178.5 |
180 |
120 |
|
8.4" |
CTA084C-4FG |
3/4/6 |
172 |
130 |
215.6 |
200 |
158 |
|
10.4" |
CTA104C-4FG |
3/4/6 |
213 |
160 |
266.4 |
242 |
189 |
|
12.1" |
CTA121C-4FG |
3/4/6 |
247 |
185 |
308.6 |
276 |
214 |
|
15" |
CTA151C-4FG |
3/4/6 |
306 |
230 |
382.8 |
341 |
265 |
|
17" |
CTA170C-4FG |
3/4/6 |
340 |
272 |
435.4 |
374 |
306 |
|
18.5' |
CTA185C-4FG |
3/4/6 |
410 |
231 |
470.6 |
439 |
265 |
|
19" |
CTA190C-4FG |
3/4/6 |
382 |
305 |
488.8 |
420 |
343 |
|
19" |
CTA190N-4KG |
3/4/6 |
414 |
262 |
899.9 |
447 |
296 |
|
22" |
CTA220C-4KG |
3/4/6 |
476 |
297 |
561.1 |
514 |
340 |
|
24" |
CTA240C-4KG |
3/4/6 |
518 |
324 |
611 |
566 |
368 |
Technical Specification
|
Technology |
Surface Acoustic wave |
|
Size |
6.4" -26" , can be customized |
|
Resolution |
4096X4096, Z-axis 256 |
|
Material |
Anti-glare glass, (vandal-proof optional) |
|
Light Transmission |
90% ～92% |
|
Response Time |
<16ms |
|
Accuracy |
Less than 2mm |
|
Touch Material |
Finger, Soft Rubber Pen |
|
Surface Hardness |
Mohs' hardness rating of 7 |
|
Operating Temp |
-10°C to +50°C |
|
Storage Temp |
-20°C to +60°C |
|
Durability |
Scratch-free; More than 50,000,000touches in one location without failure |
|
Certificate |
CE, FCC, RoHS |
|
Remarks: Size can be customized according to customer's needs |
|
