Rkens Technology Co., Ltd.
China Manufacturer with main products: SMD Component Counter, v-Cut PCB Separator, Auto Cutting Machine, Wire Cut and Strip Machine, Radial Lead Cutter, Axial Lead Former, Label... |
Moterized PCB depaneling machine/PCB depaneler
| FOB Price: | 1.00 - 2,500.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set(s) per Month |
| Shipping: | 1-2 days after getting your payment |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | Wooden case |
Quick Details
- Model Number: YS-805B
- Brand Name: RKENS
- Name: pcb depaneling machine
Specifications
Moterized PCB depaneling machine/PCB depaneler
Usage
The machine is used to v-cut pcb board to samell pcb.
According to the length of your pcb, we have different models for you. Such as YS-805 for pcb less than 400mm length, and YS-830 for any length pcb cutting.
Available PCB thickness: from 0.2mm to 3.2 mm
Available V-cut thickness: from 0.2mm to 2.0mm
If you are interested in our machine, please tell us the length of your pcb, we will recommmend a suitable machine for you.
Features
1, Controlled by microcomputer program, it can cut board accurately with no error.
2, Adjustable blade moving speed: 300mm/s or 500mm/s. As per customers' need, certain speed can be set.
3, Upper blade can be adjustable between 0 and 2mm to meet different thickness of PCB and V-cut.
4, Operation platform can be adjustable higher and lower between 0 and 50mm.
5, As per your pcb length, we have different models for you. So any length pcb is available.
6. Available board thickness: 0-3.2mm, V-groove thickness:0-2mm
7. Pre-set the cutting start and end point to well control the cutting length.
8. The blades are sharp and endurable. And they can be sharpened between 7 and 10 times.
9. Minimize the shearing stress to avoid micro-cracks of the solder joints
Parameters
|
Model |
YS-805A |
|
Cutting Length |
0-400mm(For longer pcb, contact me) |
|
Outer dimension |
L740xW550XH460mm |
|
PCb length |
Different models for different length of pcb cutting
|
|
Electric Load |
AC220V 50Hz & AC110V/60HZ |
|
Electric Power |
250W |
|
Suitabe for |
V-Groove PCB Board/Aluminum PCB |
|
Package |
Wooden Case |
|
Weight |
Approx.60KG |

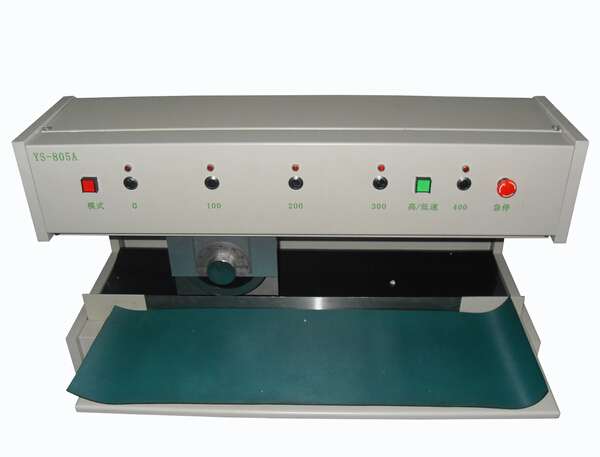

PCB depanelizer pictures
