LED Strip PCB Cutting Machine, Aluminum pcb board cutter

FOB Price:	1.00 - 2,300.00 USD/Set
Supply Ability:	200 Set(s) per Month
Shipping:	1-2 days after getting your payment
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

PCB Separator JYVC-LS

Price:

Min. Order:1 Set
T21600 Automatic assembly line labeling head

Price:1,000.00-10,000.00 USD/Set

Min. Order:1 Set
Ponovo TD4000 High Voltage DC Current Test Set ...

Price:1.00-20000.00 USD/Set

Min. Order:1 Set
CNC PCB Drilling

Price:80.00-325.00 USD/Square Meter

Min. Order:3 Square Meter
XK-DEB1 Digital Electronic Training Set (module...

Price:100.00-1,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China
Packaging Details:	Wooden case

Quick Details

Warranty: 1 year
Certification: CE
Weight: 40KG
Power(W): 40W
Voltage: 220V/110V
Model Number: RS-720
Brand Name: RKENS
Condition: New
Name: PCB cutting machine

Specifications

Usage: Suitable for cutting unlimited length of v-cut PCB, aluminum PCB, FR4 PCB, PCBA, etc.

Aluminum pcb board cutting machine, LED strip pcb cutting machine

Machine Parameters

Maximum length of the board: unlimited

Thickness:0.6~3mm

Feed pcb Speed:80, 120, 200, 300mm/s

Material of blade :SKH7 HSS

Power supply: 220V/50HZ 40W

Operating temperature: 10~35 degrees

Can cut LED panel, fiberboard, aluminum board , FR4

Size: 540mm(L)*280mm(W)*240mm(H)

Weight: 40kg

Storage temperature: -20~50 degrees

Features

1. For cutting any length v cut pcb, aluminum pcb, fiber board, FR4, LED pcb, pcba.

2. Three pair of blades can guarantee the aluminum plate without deformation and damage after cutting.

3.Due to three times cutting, cutting process is smooth and can locate v cut very well to avoid v-cut jumping out.

4.High quality blade and small cutting force ensures long life of blade.

5.Blades are calibrated by Excitation double-frequency laser interference measurement instrument, which can ensure rear and front blades cut same places of the v cut. Perfect cutting effect.

Advantages

1. It is quite suitable for aluminum board.

2. It can cut the board without warping.

3. The stress is very low when cut board.

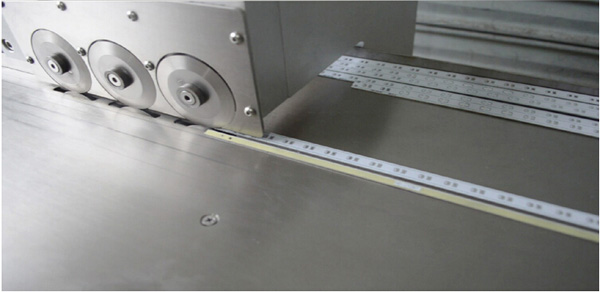

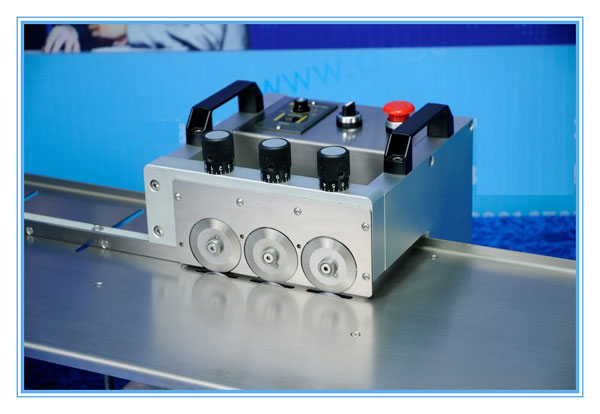

LED Strip PCB Cutting Machine Aluminum pcb board cutter
