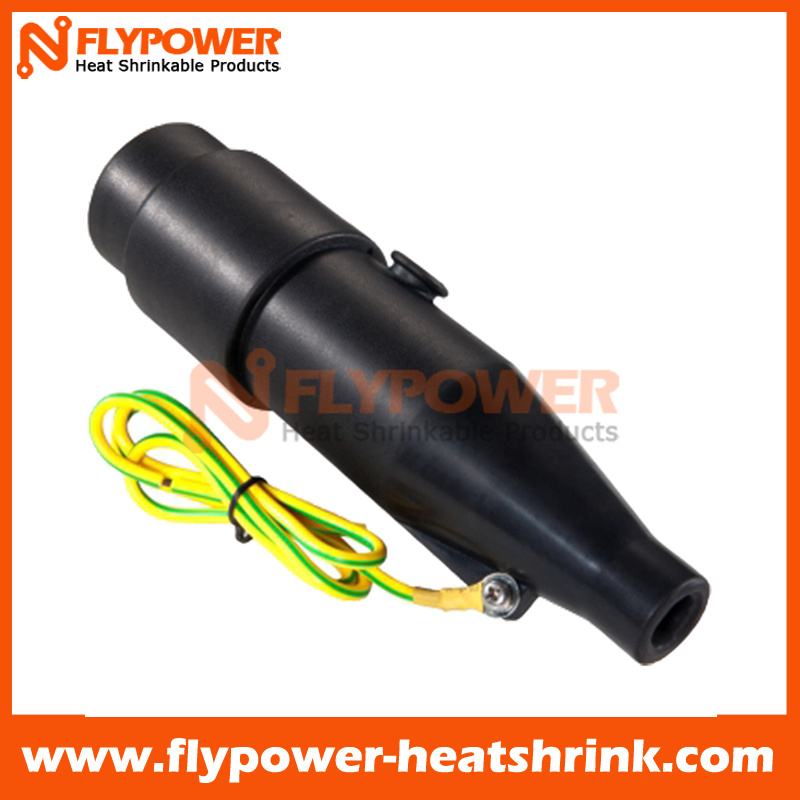

250A S Type Screened Connector BH-CS
FOB Price: | 3.00 - 20.00 USD/Piece |
---|---|
Supply Ability: | 1,000,000 Piece/Pieces per Month |
Shipping: | FOB |
Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
---|---|
Place of Origin: | Zhejiang in China |
Packaging Details: | Cartons or bags |
Quick Details
- Model Number: BH-CS
- Brand Name: Flypower
- Approvals: Meet: IEC60502-4, GB12706.4.
- Colors: Black
Specifications
Application:
BH-CS 250A S type screened connector, made of EPDM elastomer, is used for indoor application, the main body is composed of inner conductive layer,insulating layer and outer conductive layer, suitable for the connection of XLPE cables 8.7/15kV, 12/20kV to transformers, switchgears and other equipment with premolded separable connector.
Characteristics:
1.100% factory tested before shipment, quality guaranteed;
2.Compact design and suitable adaptor (stress cone) easy & simple installation;
3.Compact design and suitable adaptor (stress cone) easy & simple installation;
4.The stress cone adaptor covers the cable range of 35mm2 -150mm2;
5.Combined with insulation, sealing and touchable screened.
Approvals / Specifications: Meet: IEC60502-4, GB12706.4.
Colors: Black
Specification and Structure:
Size(mm) |
Main insulation diameter (mm) |
Cable cross-section |
|
8.7/15 kV(mm2) |
12/20kV(mm2) |
||
Φ 15 |
18-20 |
35-50 |
35 |
Φ 18 |
21-23 |
70-95 |
50-70 |
Φ21 |
24-26 |
120-150 |
95-120 |
Technical Data:
Performance |
BH-CS-101 |
BH-CS-203 |
Rated voltage |
8.7/15(17.5)kV |
12/20(24)kV |
Max. system voltage |
17.5kV |
24kV |
Continuous current |
250A |
250A |
Partial discharge |
15kV/≤10pC |
20kV/≤10pC |
A.C withstand voltage |
39kV/5min |
54kV/5min |
