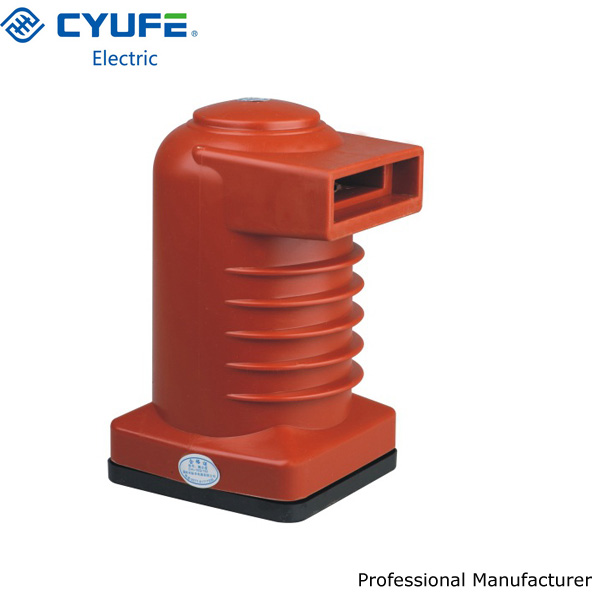

12KV Contact box for switchgear components
| Supply Ability: | 3,000 Piece/Pieces per Month |
|---|---|
| Shipping: | FOB Shanghai / Ningbo |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Standard Exporting Package |
Quick Details
- Tensile Strength: 56
- Rated Voltage: 12KV
- Application: High Voltage
- Material: Composite Polymer
- Type: Insulation Sleeving
- Model Number: CH3-10Q-150
- Brand Name: YUFENG
- material: epoxy resin
- current: 630x-1250A
- SIZE: 250x150
- usage: switchgear
Specifications
12KV Contact box for switchgear components details listed as belows:
Material: Epoxy Resin
Rated Current: 1250-1600A
Rated Voltage: 12KV
Max Voltage: 12KV
Technology: APG technology
Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear
Operation Condition
1. Altitude: ≤ 1000m;
2. Ambient temperature: +40~-10o C;
3. The relative humidity shall not be more than 95% at+20 o C ambient temperature;
4. NO gas, wapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance.
Technical Date &Requirement
1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse vpltage (peak value)of 75KV;
2. The temperature of lead-out terminal shall not bemore than 65o C if the contact box is used for long time in rated current condition;
