IP68 LED flexible strip
| FOB Price: | 2.00 - 4.00 USD/Meter |
|---|---|
| Supply Ability: | 200,000 Meter/Meters per Month |
| Shipping: | 7days after confirming deposit |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | South America, Mid East, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | ESD bags+export cartons |
Quick Details
- Voltage: DC12V
- Holiday Name: Christmas
- Rated Power: 4.8W/m led strip
- Length: 5m/roll led strip
- Model Number: led strip
- Brand Name: CBY led strip
Specifications

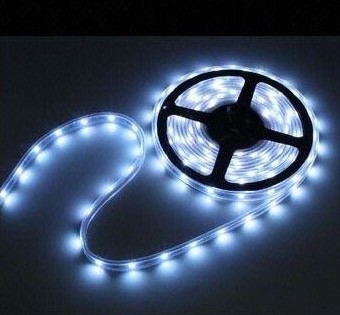

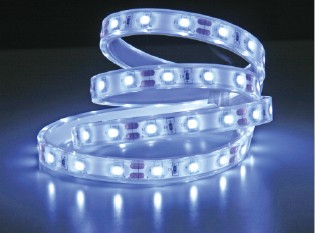

IP68 3528 LED Strip
Details of LED Strip
|
Product name |
IP68 3528 LED strip |
|
Demensions(L)×(W)mm) |
5000*10mm*0.2mm |
|
Color |
White |
|
Wattage |
4.8W |
|
Voltage |
DC12V |
|
Life (hours) |
30000 |
|
LED Chip |
SMD 3528 |
|
QTY of LED |
60LEDs/m |
|
IP Rank |
IP68 |
|
Ra / CRI |
>80 |
|
Warranty |
3 years |
|
Application |
Bathroom, living room, kitchen |
|
Package |
5M/roll |
|
Part No. |
Colour |
Type |
Mcd CCT |
Lumen/m |
Voltage power |
CRI |
package |
|
900.300.121 |
CW |
60pcs/m 3528 SMD LED |
5500-6500K |
1200-1400 |
DC12V 4.8W/m |
>80 |
5m/roll |
|
900.300.221 |
WW |
2900-3200K |
1100-1300 |
||||
|
900.300.721 |
R |
620-625nm |
150-200 |
||||
|
900.300.821 |
Y |
590-595nm |
300-350 |
||||
|
900.300.921 |
B |
465-470nm |
150-200 |
||||
|
900.300.021 |
G |
515-520nm |
650-750 |
Packaging of LED Strip
|
Standard length |
5M/roll |
|
Quantity/outer carton |
60roll |
|
Outer carton size |
510mm*390mm*200mm |
Dimensions of LED Strip
|
Items |
Description |
Protection Grade |
|
Non-Waterproof |
Ribbon Series pure Flex |
IP20 |
|
Waterproof |
PU Glue Injection |
IP65 |
|
Waterproof |
Silicon Cased |
IP65 |
|
Waterproof |
Glue injection and silicone Cased |
IP68 |
Application of LED Strip
1.Decoration for festival, event, show etc.
2.Architecure deco of canopy, corridor, windoe, archway
3.Home, comercial or public cove or outline lighting
4.Car, vehicles, metro etc. decoration.
5.Backlight or edge lighting for signage
6.Path and contour marking
Installation of LED Strip
Warm White/Neutral White/Cool White/Red/Green/Blue/Yellow/RGB
|
Warm White |
2900-3200K |
|
Pure White |
5500-6500K |
|
Cool White |
9000-12000K |
Safety Information
* The strip itself and all its components may not be mechanically stressed.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable electrical and safety standards.
Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user's responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements
Accessories
1,Bridge connector strip to strip
2.Bridge connector strip to driver
3.Bridge connector strip to strip at corner
