Changzhou Great Solar Technology Co., Ltd.
China Manufacturer with main products: Solar Panel, Solar System, Solar System, Solar Street, Solar Products |
small module with competitive price
| FOB Price: | 0.40 - 0.60 USD/Piece |
|---|---|
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details

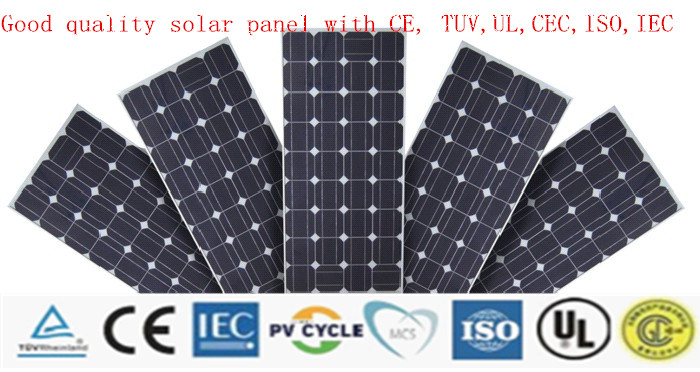

- Material: Polycrystalline Silicon
- Brand Name: Great Solar
Specifications
| GSMG-250M Series | ||||||
| Electric Characteristics | ||||||
| Model | GSMG-220M | GSMG-230M | GSMG-235M | GSMG-240M | GSMG-245M | GSMG-250M |
| Max-power voltage Vmp(V) | 28.9 | 29.5 | 29.7 | 30.1 | 30.4 | 30.7 |
| Max-power current Imp(A) | 7.62 | 7.8 | 7.92 | 7.98 | 8.06 | 8.15 |
| Open-circuit voltage Voc(V) | 36.3 | 36.6 | 36.7 | 36.9 | 37.1 | 37.3 |
| Short-circuit current Isc(A) | 8.56 | 8.67 | 8.71 | 8.77 | 8.81 | 8.85 |
| Max-power Pm(w) | 220 | 230 | 235 | 240 | 245 | 250 |
| STC:Irrandiance 1000W/m2,Cell temperature 25℃, AM=1.5 | ||||||
| Mechanical Characteristics | ||||||
| Tolerance ±3% | ||||||
| Cell Polycrystalline solar cells | ||||||
| No.of cells 60(6x10) solar cells | ||||||
| Dimension 1650*992*45mm | ||||||
| Cable type 4mm2 | ||||||
| Connector MC4 | ||||||
| Junction box IP65 | ||||||
| Glass type Low Iron,tempered glass,3.2mm thickness | ||||||
| Weight 19.0Kg | ||||||
| Operating Conditions | ||||||
| Operating Temperature -40~+85℃ | ||||||
| Storage Temperature -40~+85℃ | ||||||
| Maximum system voltage DC1000V | ||||||
| Temperature and Coefficients | ||||||
| NOCT 48℃ ±2℃ | ||||||
| Temperature coefficient of Voc(%/K) -0.34 | ||||||
| Temperature coefficient of Isc(%/K) 0.09 | ||||||
| Power temperature coefficient(%/K) -0.37 | ||||||
| Packing | ||||||
| Carton 2 pcs/carton | ||||||
| Pallet 20cartons/pallet | ||||||
| Loading Capacity 254pcs/20,GP; 560pcs/40,GP | ||||||
| Quality and Warranty | ||||||
| Peak power of single module is guaranteed in ±3% | ||||||
| 5 years limited warranty on material and workmanship | ||||||
| Limited power warranty :10 years 90% and 25 years 80% | ||||||
| limited warranty for minimum power output | ||||||
