touchscreen kiosk payment terminal kiosk for airport,hospital,bank,metro bus station,gas station

Specifications

17, 19, 32,35, 42, 45, 52, 55, 65 inch Interactive Touch Screen Information Kiosk
lobby kiosk /information broswer /Payment terminal kiosk/ self-service multi-function kiosk

for cinema, resturant, hotel, bank, shop, supermarket, gas station, subway ,theater,public place ,etc

1.single displays,

2.extra slim,

3.space-saving kiosk with durable steel enclosure;

4.stylish and ADA compliant design;

5.vandal-proof SAW touchscreen,TFT LCD displays

Key Features

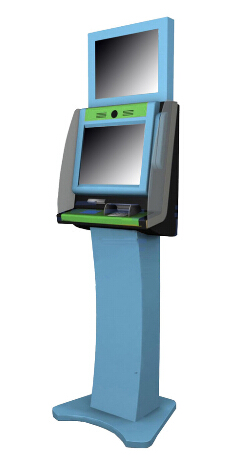

1. Two displays:highly visible upper display for video play or advertisement;lower display

     paired with Saw touchscreen for interaction

2.High-sensitivity,high light-transmittance,anti-glare,vandal-proof SAW touchscreen

3.15″,17″,19″TFT LCD displays for option ( for lower display and upper display)

4.Durable steel enclosure, extra slim, stylish and ADA compliant design

5.Built-in hi-fi amplified speakers

6.Customizable

7.Applications: office building,court house,hospital/ medical center, airport, university,

   government building,retail store,theater ,travel place, bus station,metro station and others

Tecnology Data:

1. TFT LCD Display:

   Resolution: 1024 *768 (15inch)   1280 *1024 (17inch and 19inch)

   brightness: 250-300 nits,

   contrast ratio: 450:1   Response time: 8ms,

2. Touch screen: Vandal proof saw touch screen ,

    material: heat tempered glass in 6mm thickness, resolution: 4096*4096

    Deviation of error: <2mm   Light transmittance:>/= 92% ,

    surface hardness: 7 Mohs scale

    lifetime: 50000000 times at one single location

    response time: less than 16 ms, touch activation force: 10-100g,

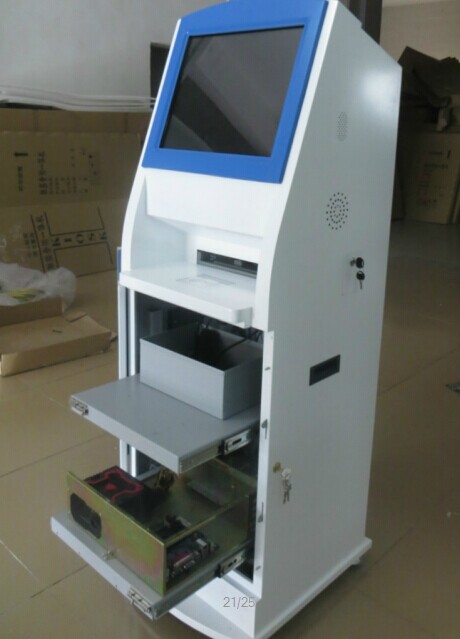

3. Enclosure:

    durable steel enclosure in vary color option,

    built in power control pan and hi-fi speaker,

    two cooling fans for comp and main body seperately, RJ 45/ RJ11 interface

    large access doors with tubular locks / keys

4. mother board:  (updateable request)

    CPU intel pentium dual core E3400 2.6Ghz , RAM: 1GB,  Hard disc: 320GB

5. operation system:  Linux/ win3.x/ 98/ 2000/ NT4.0/ XP/ Win 7,

6. Working Voltage: ac 220v 50HZ or 110V 60Hz for option

7. ambient enviroment :

    Working temp:  -20 to 65 celisus degree, relative humidity: 30% to 90%

     storage temp:  -40 to 80 celisus degree, Relative humidity: 5% to 95%

8. optional perpherals:  Trackball, card reader/ writer barcode scanner, printer,

    video camera etc
