Rkens Technology Co., Ltd.
China Manufacturer with main products: SMD Component Counter, v-Cut PCB Separator, Auto Cutting Machine, Wire Cut and Strip Machine, Radial Lead Cutter, Axial Lead Former, Label... |
Tape&reel electronic parts/components counter for SMD
| FOB Price: | 1.00 - 1,000.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set(s) per Month |
| Shipping: | 1-2 days after getting your payment |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton box with foam |
Quick Details
- Model Number: RS-801
- Brand Name: RKENS

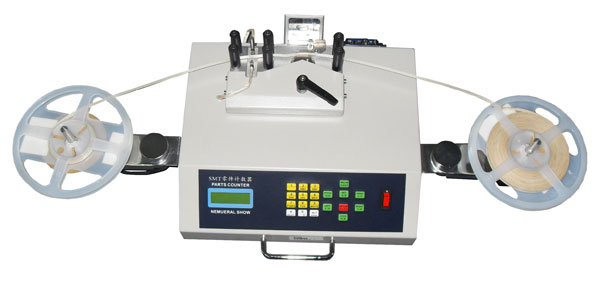

- Name: Tape&reel electronic parts/components counter for SMD
- Usage: Count tape&reel smd components
Specifications
Tape&reel electronic parts/components counter for SMD
It can operate in two different ways:
Totalizer: components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the tape end, to prevent loss of the total.
Preset mode: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component.
Overview:
Fast, error-free SMD counters, can count 5000pcs components in 30 seconds.Optional Models include reel counters with barcode scanner and label printer that identify and record quantity and date information.
Optional pocket-Check feature alerts operator to missing components.
Parameters
|
Voltage |
AC110V/220V, 50/60Hz(convertible) |
|
Capability |
5000 pcs /30s |
|
Power consumption |
30W(2 Motors) |
|
Counting volume |
-99999 ~ 99999pcs |
|
Size |
L470*W300*H180mm |
|
Net Weight |
10kg |
|
Reel Diameter |
Suitable for SMD Reel with any diameter |
|
Reel Interval Distance |
2,4,8,10,12,16,24,32,44,56mm |
|
Reel Width |
8,12,16,24,32,44,56mm |
Features
1.Full automactic counter, high accuracy, no error.
2.No risk of damaging the tapes, special design to prevent SMD reel from dropping.
3.Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.
4.The counter use drafting LCD screen, easy operation, full English display.
5.Use patent reflector,humanized operation platform.
6.Optional bar scanner and code printer, convenient for component management.
7. Optical sensor can detect empty components. Motor will stop working when detected leak.
Optional Function
Empty Pocket Detection - Includes: Optical Sensor which looks through pocket centre hole, On/Off Switch, Audible Buzzer, Red Panel LED Indicator & Reset Switch.
