Home >Products Catalog > gabions > Welded Galvanized Gabion Baskets Welded Panel Gabion Stone Box

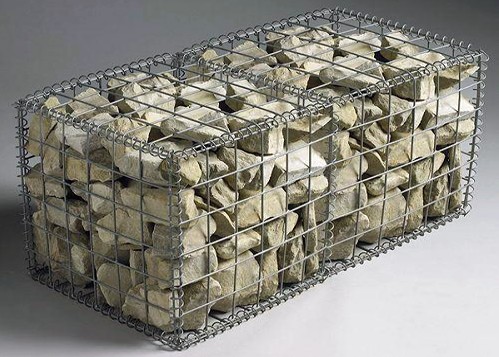

Welded Galvanized Gabion Baskets Welded Panel Gabion Stone Box

Supply Ability:	300 Piece/Pieces per Day
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Quick Details

Wire Gauge: 3.5-5.0mm
Material: Galvanized Iron Wire
Aperture: 50*50mm,70*70mm
Hole Shape: Square
Application: Gabions
Type: Welded Mesh
Material: Galvanized Iron Wire
Model Number: ZaG14105
Brand Name: HT

Specifications

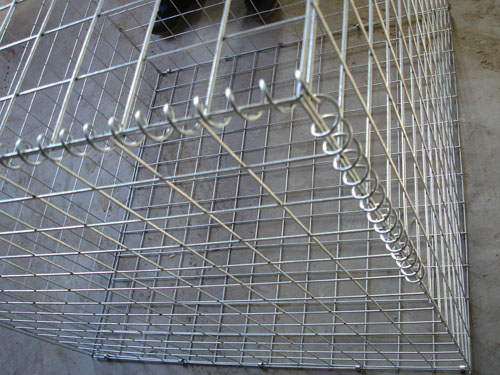

Welded Panel Gabion could be used for stone wall,garden decorative wall or hesco barrier.

All the panel is hot-dipped galvanized or galfan(zinc-aluminium coating)

Popular size:

Mesh opening:50X50mm,75X75mm,70X70mm

Diameter:4.0mm,4.5mm,5.0mm

Stone cage size :100X30X50cm,100X50X50cm

welded Stone net size 100X250cm,200X250cm,with mesh opening of 25X200mm,50X200mm,diameter of 5/4/5mm,6/8/6mm

The larger welded gabion box could be used as hesco barrier,

Material: Galvanized welded mesh, spring with other fittings, can be filled with sand, earth, cement, stone. Can be used in separate cell or some cells joint together.

Wire diameter: 3mm-5mm

Mesh opening size: 50mm-75mm

Panel size: The hesco Barriers come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 4'6" x 3'6" x 32' (1.4m x 1.1m x 9.8m) to 7' x 5' x 100' (2.1m x 1.5m x 30m)., it also can be customized according to customer's requirement

Geotextile: in heavy duty non-woven polypropylene

Finish: hot dipped galvanized, electro galvanized

Packing: wrapped with shrink film or packed in pallet.

PRODUCT INTRODUCE

The hesco barrier or hesco bastion is a modern gabion for military fortification. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary blast or small-arms barrier. One of the less heralded life and labor-saving devices of war. originally designed for use on beaches and marshes for erosion and flood control.the "Hesco Bastion" as it is officially known, quickly became a popular security device
