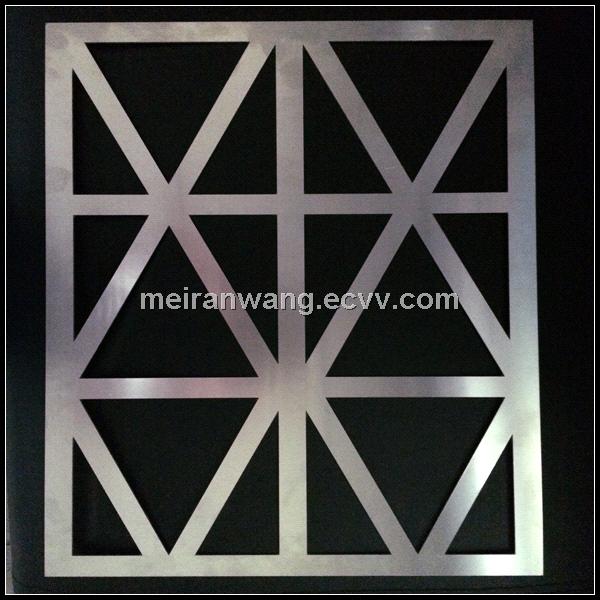

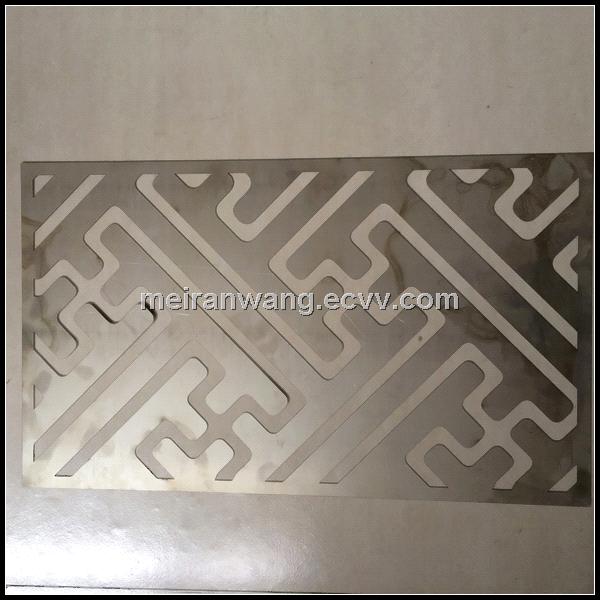

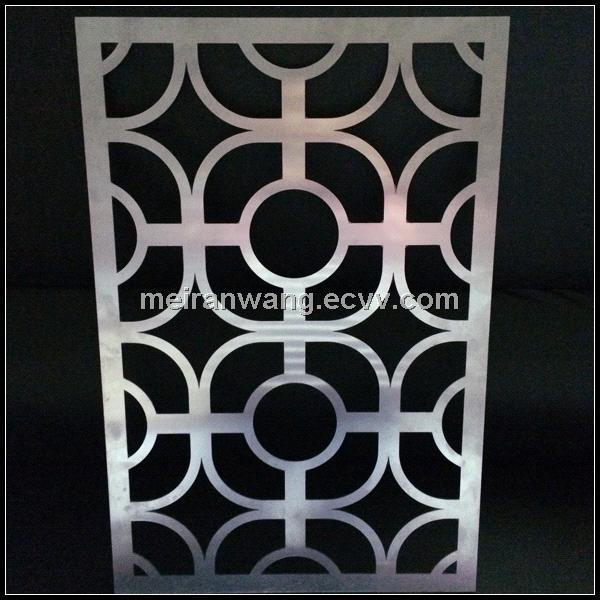

304 stainless steel perforated plate laser cuting

FOB Price:	21.00 - 27.00 USD/Square Meter
Supply Ability:	5,000 Square Meter per Day
Shipping:	15 days for a 20'container
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Perforated Plate

Price:10.00-30.00 USD/Piece

Min. Order:100 Pieces
Stainless Steel Coil Strip (201 NARROW)

Price:

Min. Order:20 Ton
Stainless Steel Coil

Price:1800.00-3500.00 USD/Ton

Min. Order:1 Ton
Stainless Steel Punched Metal Sheet

Price:5.00-8.00 USD/Square Meter

Min. Order:300 Square Meter

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	packed on metal pallets or wooden carton

Quick Details

Brand Name: DBL
Model Number: HJ-E 1731 Our newest punching machine is a 33 ton, 58 station Amada
Technique: Perforated
Wire Diameter: 0.5MM-25MM
Weave Style: Plain Weave
Application: Screen
Type: Perforated Mesh
Material: Stainless Steel Wire
Item: 304 stainless steel perforated plate laser cuting
manufacturer origin: hebei province,china
surface finish: powder coating,anodizing,PVDF coating
panel size: 1220mmx2440mm

Specifications

304 stainless steel perforated plate laser cuting

Our newest punching machine is a 33 ton, 58 station Amada EMZ 3610 Turret Press. Its high-speed servo-electric, twin drive system can punch 500 holes
per minute and up to 1800 pitch marks per minute with accuracy over the entire sheet of +/-.002". The EMZ's 60" x 100" bed, the largest commercially
available, can handle an 8' sheet without repositioning. On-board forming and high quality processing eliminate secondary operations reducing lead-
times and cost.
1.Material:
mild steel,stainless steel,brass plate,Aluminum plate,nickle plate and galvalnized
steel.

2.Hole shapes:
Round hole,square hole,long round hole,triangle hole,scale hole,oval hole,hexagonal
hole,slot hole.

3.Aperture:
In general Decorative Perforated Sheet for curtain wall is advisable to use a hole size larger than the material
thickness.The closer the hole size and material thickness,the more difficult and expensive the process is.The
minimum diameter we can fabricate is 0.8mm.And the other demands
from customers will be available.

4.Hole spacing:
Hole center is the distance from the center of one hole to the center of the nearest
hole in the next adjoining row.

5.Specifications:
We can manufacture a wide range of specifications.
Thickness :0.1mm-5mm
Width: Max 2500mm
Standard sheet size:1000mm*2000mm

6.Hole arrangement type:
1)60°,stggered:
2) 45°,staggered
3) Vertical
4) Square hole
5) Long hole(vertical)
6) Hexagonal hole

7.Opening area
open area is the total area of the holes divided by the total area of the sheet and is
expressed as a percent .The higher the open area, the more material distortion takes
place, especially when the perforated pattern is bordered by margins on all four sides

9.Tolerance:
There are tolerances on thickness, pitch, openings, flatness, and shearing for perforated products

304 stainless steel perforated plate laser cuting
