Zhejiang Tribrer Communication Limited
China Manufacturer with main products: Optical Power Meter, Optical Laser Source, Visual Fault Locator, Fiber Cleaver, Fiber Identifier, Optical Talk Set, Fusion Splicer, OTDR |

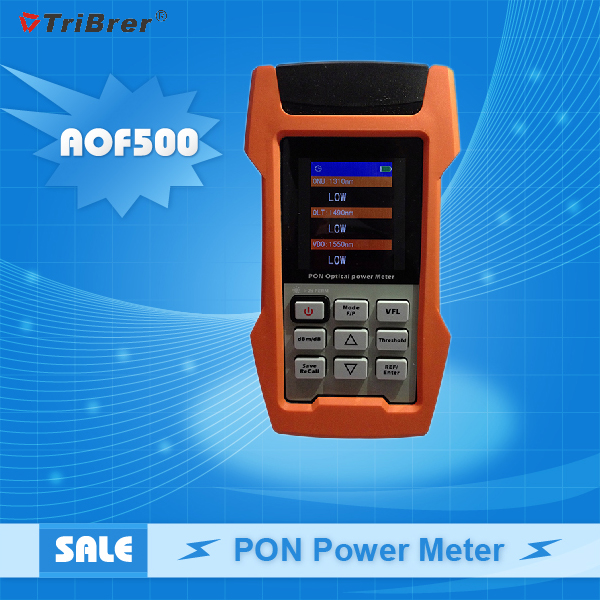

PON Power Meter
| Supply Ability: | 3,000 Set/Sets per Year |
|---|---|
| Shipping: | in 3~5 days |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
Quick Details
- Model Number: AOF500
- Brand Name: Tribrer
Specifications
Product Feature
- Automated PASS/FAIL assessment
- Quick and efficient visual inspection
- Providing distinct power values for 1310 nm,1490 nm and 1550 nm
- Pass through measurement
- Simultaneously measure and display the concurrent voice, data and video signals on different PON architectures
- Manual calibration
- One-year warranty and Three-year recommended calibration interval
| SPECIFICATIONS | |
| Model |
AOF500 |
| Measurement Range(dBm) |
1310 nm: +10 ~ - 35 dBm/1490 nm: +10 ~ - 50 dBm/1550 nm: +25 ~ - 45 dBm |
| Pass Through Loss | < 1.5 dB |
| Accuracy * | ±0.2 dB (burst signal:±0.5dB) |
| Threshold sets |
10 |
| Data Storage | 100 |
| Connector | SC/PC ( or customize ) |
| Auto Power Off | No operation in 10 minutes (can be canceled), Low battery energy |
| Battery Charge |
Yes |
| Connect To PC | Optional function |
| Manual Calibration |
Yes |
| Operate Time |
Above 36 hours |
| Power Supply | 3* AA batteries or AC/DC power supply adapter |
| * at 20±3°C, with SC/PC connector, -10dBm | |
| GENERAL SPECIFICATIONS | |
| Size(H*W*D) |
190mm *90mm * 40mm |
| Weight |
about 450g |
| Storage Temperature | -20 -- +60°C, < 90%RH |
| Operating Temperature | -10 -- +50°C, < 90%RH |
| ACCESSORIES | |
|
Standard |
Optional |
|
Carrying bag*1 |
AC/DC adapter*1 |
| Certificate of Calibration*1 |
Hardware and Software of PC connectionr*1 |
| User′s manual*1 | |
