>Products Catalog > Xiang Sheng HiFi DAC-01A Coaxial Optical USB asynchronous XMOS / TE7022 gall decoder amp

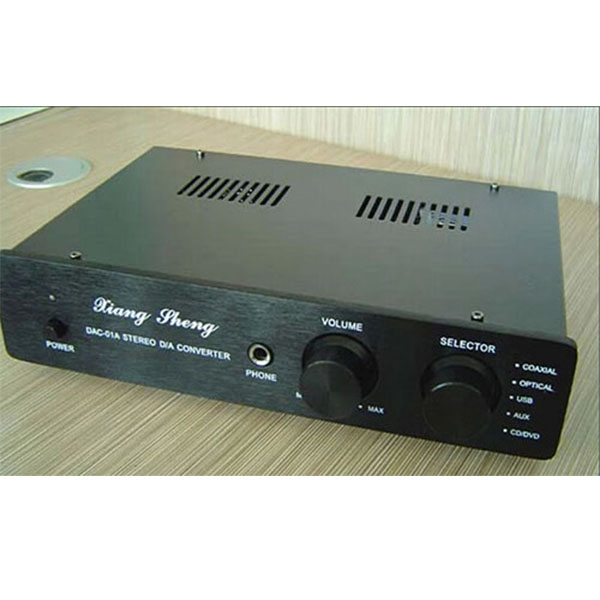

Xiang Sheng HiFi DAC-01A Coaxial Optical USB asynchronous XMOS / TE7022 gall decoder amp
| FOB Price: | 130.00 - 140.00 USD/Kilogram |
|---|---|
| Supply Ability: | 15 Box/Boxes per Month |
| Shipping: | 30 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Oceania, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Anhui in China |
| Packaging Details: | SUPER-HEAT PACKING, 300MM x 55MM x 170MM, MTR BOX. |
Quick Details
- Model Number: DAC-01A
- Brand Name: XiangSheng
- HiFi DAC-01A: Coaxial Optical USB asynchronous XMOS / TE7022 gall decoder amp
Specifications
Xiang Sheng HiFi DAC-01A Coaxial Optical USB asynchronous XMOS / TE7022 gall decoder amp
NEW! NEW! NEW! Improvement Version!
XiangSheung - 24Bits 192Khz DAC with Tube AMP PreAmplifier & Headphone Amp.
All output both control by Volume. 2 RCA output & Headphone output both control by Volume control.
Colour: Sliver or Black. Please let me know what colour you like!
This is the Newer Version have lot of aera improved!
You Can add USD3 to have a NEW in box GE 5670 Tube. You can change the 6N3 to This 5670 to find out more lover Music.
Model: DAC-01A Improvement
Input: 5 Input (1 USB, 1 Coaxial, 1 Optical, 2 Analog RCA).
Output: 3 Output (1 OP Amp, 1 Tube, 1 Headphone).
Headphone Mode: (OP Amp + Buffer Amp). Improve the driveing Curreunt.
Sampling IC: CS8416, CS4398.
USB IC: TE7022(support 24BIT/96) OR XMOS(support 24bit/192k).
Output OP Amp: OPA2604 x1, LF353N x2 OR NE5532N.
Output Tube: 6N3.
Panel Color: Sliver or Black.
AC: we can make the vtoage which you want,please tell us
Technical specifications:
Input Impedance: Analog 100kohm
Digital 75ohm
THD:Transistor output-<=0.001%
Tube output-<=0.1%
Frequency Response:20Hz-30kHz+/-1db
Maximum output: 1000mw*2(32ohm)
500mw*2(300ohm)
300mw*2(600ohm)
S/N Ratio: Transistor-96db
Tuble-90db
This DAC supports 16bit,20bit and 24bit audio
depending on source.
Sampling Frequency:44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz and 192kHz,depending on source.
Output voltage:>2000mv
Dynamic Range:117db
Power Supply:AC120/240,60/50Hz
Measurement:26cm*5.5cm*17cm
Working Temerature:5-40degree Celsius
Working Humidity:35-80%
Net weight:2kg
Warranty:Within One Year . Tubes are 3 months.
