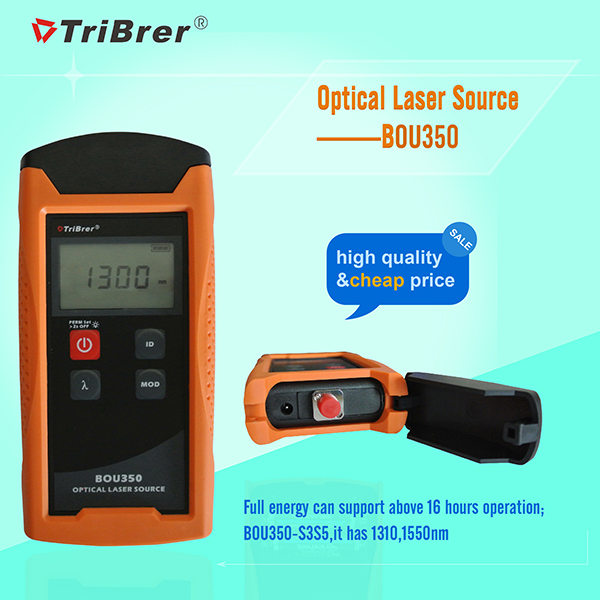

Optical Laser Source
| Supply Ability: | 3,000 Set/Sets per Year |
|---|---|
| Shipping: | in 3~5 days |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
Quick Details
- Model Number: BOU350
- Brand Name: Tribrer
Specifications
Product Feature
- 1~3 wavelengths output from one port
- High stabilization, build in optic isolator;;
- 270, 1000, 2000 Hz Tone
- Auto Wave ID output(should work with Tribrer optical power meter);
- Energy save mode;
- Power autonomy of 16 hours ;
- One-year warranty and Three-year recommended calibration interval
Product Specification/Models
|
SPECIFICATIONS |
||||||
| Model | M8 | M3 | S3 | S4 | S5 |
S6 |
| Central Wavelength(nm) | 850 | 1300 | 1310 | 1490 |
1550 |
1625 |
| Stabilization* | ±0.05dB / 1 hour;±0.1dB / 8 hours | |||||
| Output Power |
> - 6dBm @ 1310nm/1490nm/1550nm/1625nm / > -10 dBm @ 850nm/1300nm |
|||||
| Modulation | 270Hz, 1KHz, 2KHz | |||||
| Connector |
FC/PC (or customize) |
|||||
| Auto Power Off | No operation in 10 minutes (can be canceled), Low battery energy | |||||
| Battery Charge |
Yes |
|||||
| Power Supply | AA * 2 batteries or AC/DC power supply adapter | |||||
| * After 5 minutes warm-up, 20±3°C, CW, FC connector, with optic isolator | ||||||
| GENERAL SPECIFICATIONS | ||||||
| Size(H*W*D) |
160mm * 75mm * 32mm |
|||||
| Weight | About 180g | |||||
| Storage Temperature | -20 -- +60°C, < 90%RH | |||||
| Operating Temperature | -10 -- +50C, < 90%RH | |||||
|
ACCESSORIES |
||||||
|
Standard |
Optional |
|||||
| Carrying bag*1 | AC/DC adapter*1 | |||||
|
User′s manual*1 |
||||||
|
Calibration certification*1 |
||||||
