Fully Automatic Screws/ Shell/ Bugles Chips Processing Line
| Supply Ability: | 2 Set/Sets per Month |
|---|---|
| Shipping: | Qingdao |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | woden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1years
- Certification: CE ISO
- Dimension(L*W*H): 16*1.2*1.8m
- Weight: 3t
- Power(W): 86KW
- Voltage: 80V/ 50Hz /3, If it is different from yours , we will adjust it
- Application: Snack food
- Model Number: CY
- Brand Name: CY
- Condition: New
- Energy: Electrical
Specifications

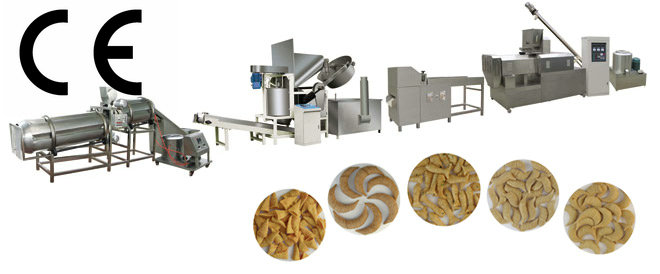

Screws/ Shell/ Bugles Chips Processing Line
Introduction:
This line use wheat flour ,corn starch ,potato starch and cassava starch as the main raw materials .By changing the moulds, it can produce different shapes, including screw, shell, round tube,square tube,ring, cartoon shape and sport shape and so on.
This line is reasonable design, high automation, the extruding parameter can be controlled precise. Main extruder has high and low pressure screw, broaden the scope of raw material, reducing the processing cost and modify the product quality.
Voltage:Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
The production process flow
Mix---Screw conveyor---single screw extruder---- cutting machine---cooling machine--dryer machine--Automatic fryer--Automatic flavoring line
Technical Parameter
Model
CY80
single-screw extruder line
CY100
single-screw extruder line
Installed capacity
70 kw
86kw
Power consumption
40 kw
55kw
Output
40-50kg/h
60-200kg/h
Size
15000*1200*1800mm
16000x1200x1800mm
The detailed information for the production line
NO
Machine
Motor Power
Capacity
dimension
Quantity
Function
1
Mixer
4KW
50kg/3-5 minutes
800*700*1200mm
1set
To mix the raw materials
2
screw conveyor
1.1KW
3000*800*2000mm
1set
To send the materials to the extruder
3
CY80 or CY100 Double screw extruder
30KW
40-200kg/h
2200*1200*3000mm
1set
To extrude and inflate the food.
4
cutting machine
1.5KW
150kg/h
1000*800*1300mm
1set
Can cut various shapes according to you
5
Cooling machine
1.1kw
1000kg/h
2400x1200x1800mm
1set
To cool the food
6
Dryer machine
1.2kw
1000kg/h
3000x1200x1800mm
1set
To dry the food
7
Automatic fryer
120KW
150kg/h
4500*1000*2000mm
1 set
Fry the snack food
