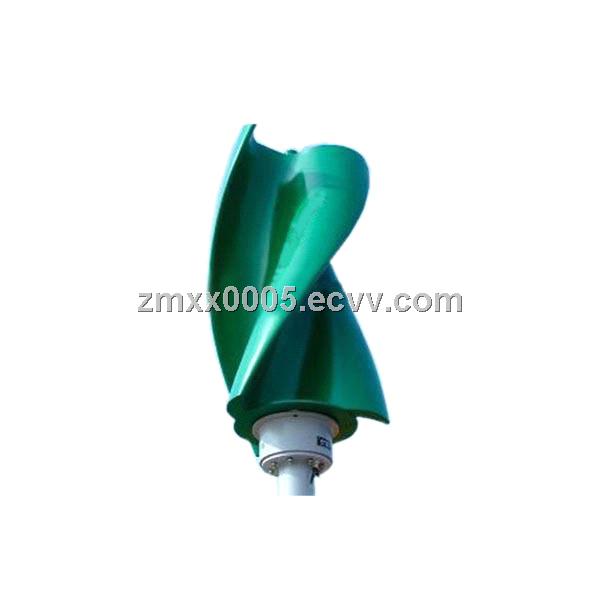

smart shape 300W S type Vertical smoke wind generator

Supply Ability:	5,000 Set/Sets per Month
Payment Terms:	L/C, T/T, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	standard packing

Quick Details

Product introduction

1.three - phase permanent magnet generators, magnetic steel are 38h, insulation Class E.

motor shell protection grade ip54.

2.Noise - free, direct - drive installation, eliminating the inconvenience of speed increase gearbox repair and installation.

3.Reasonable design, easy installation, easy maintenance.

4.The breeze starts, high efficiency of power generation.

5.Suitable for Islands, plateau, posts, such as the pastoral area of application of the power shortage areas.

Main parameter

Power (w)	300	Wind speed rating(m/s)	11
Rotor diameter (m)	1.2	rotor diameter (m/s)	2.0
Blade length(m)	1.3	Operate wind speed (m/s)	2.0-25
Blade material	Reinforced glass fiber reinforced plastic	survival windspeed (m/s)	40
Rated rotation speed (m/s)	150r/min	Out put voltage	DC24V
Limited speed way	electro magnetic control	Brake way	electromagnetic brake
Wind energy utilization	30%-40%	Wind sweeping the area (m2)	1.29
range of temperature	-45°C-60°C	proposed matching battery	12V/100AH/2KUAI
The top weight(kg)	60	Rod Type and height of the tower	Cable Tower /6m
