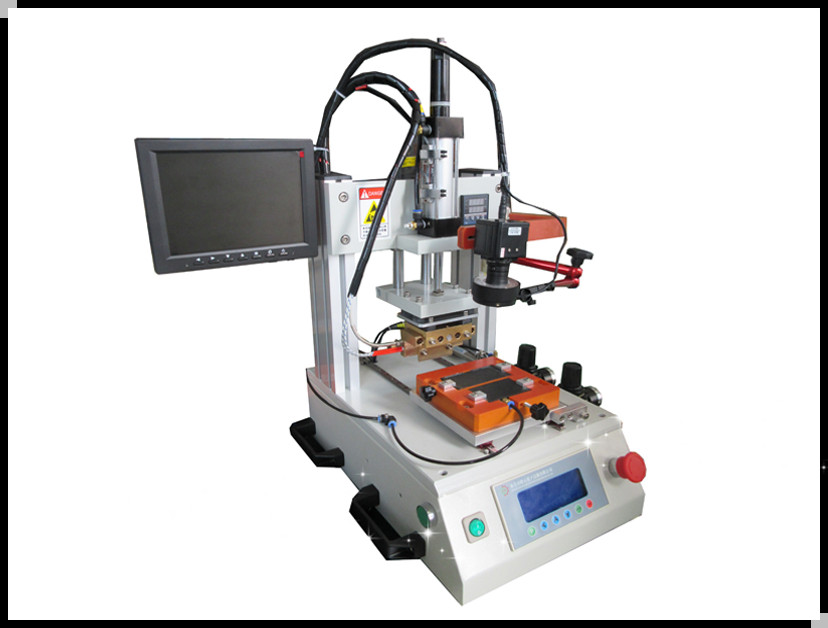

Pulse heating technology for soldering electronic components JYPP-4A
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | 3-5days |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standard Packaging |
Quick Details
- Model Number: JYPP-4A
- Brand Name: JiYuan
Specifications
1. Features
1. Because of different products, heating rate for the tuning
2. Molybdenum alloy head to ensure that the average temperature, heating up fast and long service life
3. Pressure head with adjustable levels of design, to ensure that the assembly pressure average
4. Temperature of NC precision, clear
5. With digital pressure meter, can be preset pressure range
6. Small volume, JYPP-1A belongs to a smaller version
7. Special welding materials
8. It is equipped with precise PID control, phase Angle instead of pulse drive
9. Little vibration, low noise, no voltage fluctuation
10. Welding head use molybdenum alloy instead of traditional titanium alloy, heating temperature and fast, coefficient of heat transfer, wear-resisting
2. Technical parameters
1. Size: 460*480*560mm
2. Work environment: 10-60℃, 40%-95%
3. Work size: Max 150*150mm
4. Welding pressure: 1~20kg
5. Machine weight: 35kg
6. Temperature setting: RT ~ 500 + / - 5 DEG C.
7. Work pressure: 0.45-0.70Mpa
8. Hot-pressing time: 1~99.9s
9. power: AC220V±10% 50HZ,2300W
10. Hot pressing precision: pitch0.2mm
11. Set up: Two section
12. Hot pressing head size: MAX 60*5mm
13. Positioning jig: 1
