Shenzhen Jipu Electronic Co., Ltd.
China Manufacturer with main products: Switch Power Adapter, Moblie Charger, Power Supplies, Mini Wall Charger, Data USB Cable, USB Charger, Power Bank, Jump Starter |
Home
>Products Catalog > Plug-in Power Adapter > 5V 5A Australian/Argentine Plug Wall-Mount AC/DC Power Adaptor 5.5*2.1*10 with CE/UL/Cul/FCC/SAA

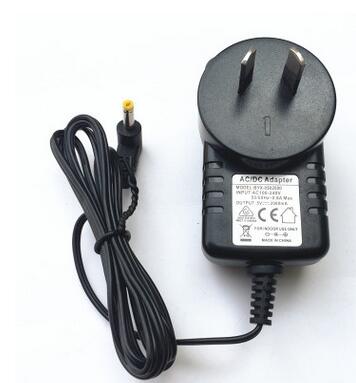

5V 5A Australian/Argentine Plug Wall-Mount AC/DC Power Adaptor 5.5*2.1*10 with CE/UL/Cul/FCC/SAA
| Supply Ability: | 100,000 Piece(s) per Month |
|---|---|
| Shipping: | TNT UPS DHL FEDEX EMS |
| Payment Terms: | T/T, Western Union, PAYPAL |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1.Inner package:PEbag,white box or as your demand 2.Outer package:Carton or according your requirem |
Quick Details
- Connection: Plug In
- Brand Name: JP
- WARRANTY: 1 year
- Color: Black,white
- Model Number: JYH32-0505000
- Input Voltage:: 90-264VAC
- Output Frequency: ( 47 to 63Hz )
- Warranty: 1 year
- Certificate: UL GS FCC SAA CE
- Size: 60*39*30mm
- Certificates: UL/cUL/FCC/SAA/CE&RoHS
Specifications
5V 5A Euro Wall-Mount AC/DC Power Adaptor 5.5*2.1*10 with CE/UL/Cul/FCC/SAA
Features:
*Universal input range 90-264VAC
*Efficiency to 85%
*Continuous Short Circuit Protection
*over Voltage Protection
*No load input power<0.3W
*Leakage Current<0.1MA
*UL60950-1/EN60950-1 Approved
SPecification:
Model |
JYH32-0505000 | |
Output |
VOltage |
100-240VAC |
Output |
5VDC | |
CUrrent |
5.0A | |
Power(max.) |
25.0W | |
100mVp-p | ||
EFficiency |
85% | |
VOltage tolerance |
5.0% | |
LineRegulation |
1.0% | |
LOad regulation |
1.0% | |
SEtup,rise time |
100ms / 115VAC at full load | |
HOld up time |
30ms/115VAC at full load | |
Input |
VOltage range |
90 ~ 264VAC |
FRequency range |
47 ~ 63Hz | |
AC CUrrent(max.) |
0.8A/115VAC 0.5A/230VAC | |
INrush current(max.) |
COLD START 30A/115VAC 60A/230VAC | |
PRotection |
OVer current |
120% ~ 150% type; TYPE: cut output reset: automatic recovery |
OVer voltage |
120% ~ 150% type; TYPE: cut output reset: automatic recovery | |
SHort circuit |
TYPE: cut output reset: automatic recovery | |
ENvironment |
WOrking temp. |
0~ 40 |
WOrking humidity |
20% ~ 80% R.HNon-condensing | |
STorage temp.,humidity |
-20~ 70 20% ~ 90% R.H | |
Safety &EMC |
DIelectricSTrengthHi-Pot |
Primary to secondary:3000Vac 10mA; Primary to shell:1500Vac 10mA; shell to secondary:1500Vac 10mA |
INsulation resistance |
Primary to secondary, Primary to shell, shell to secondary;>100M Ohms / 500VDC | |
LEaking current |
0.25mA / 240VAC | |
SAfety standard |
UL GS SAA KCC BSI PSE CCC | |
EMC STandards |
CE EN55022B FCC | |
GReen mode |
Noload Power Consumption Less Than 0.3W | |
