High speed plastic bag roll pinting machine

In Stock

Inquiry Now

PP Woven Fabric Roll/pp woven sack roll

Price:1,300.00-2,000.00 USD/Ton

Min. Order:10 Tons
Gift Bag

Price:0.10-0.50 USD/Piece

Min. Order:5000 Pieces

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	FILM AND WOODEN CASE

Quick Details

Usage:

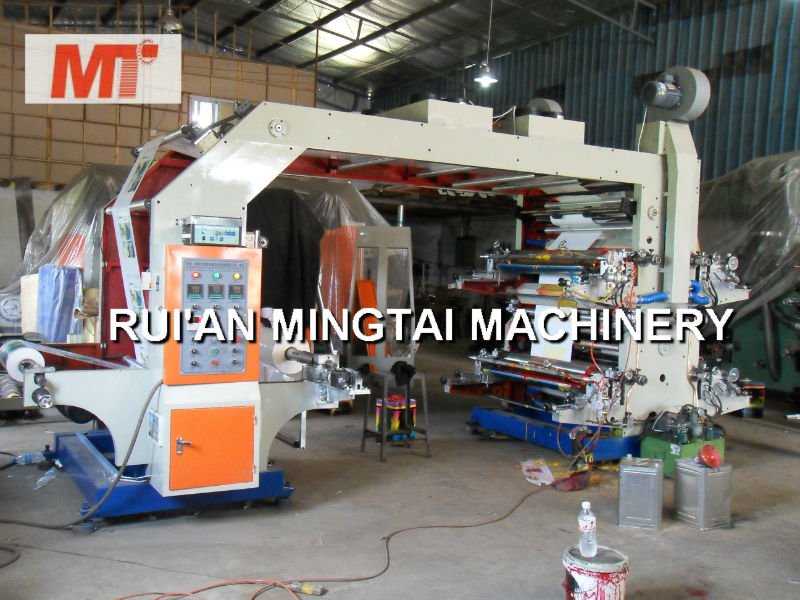

This flexible printing machine is suitable for printing such packing materials as roll paper,

plastic film bag, foil, non woven fabric etc. And it is a kind of ideal printing equipment for

producing paper packing bag food, supermarket handbag, vest bag and clothes bag etc.

Main Specifications and the Features:
1. Easy to operation, accurate color, long life

2. The use of motors, variable frequency speed control, saving electricity

3. Off –printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink

4. Rewinding and unwinding system adopts tension controller, magnetic powder and

EPC device to achieve good print effect

5. The use of special helical-tooth gear, color matching is accurate

6. There are two sets of heating devices, including central heating and constant

temperature control system for drying system

7. Low-roller special steel processing, and special process, and plating thickness of 0.1mm

protective layer of hard chromium

9. With the cold wind system, can effectively prevent from ink adhesion after printing

10. The printing produces are clear and good arrangement quality

Main Technical

4 color (any increase or decrease) / multicolor printing

Material width 800mm

Printing width 760mm

Printing length 200-999mm (normal is 400mm, different length please tell the manufacture)

Mechanical speed 30-100m/min

Printing speed 30-80m.min

Alignment precision ±0.25mm, manually

Anilox roll 100-1000 LPI/cm

Diameter for unwinding & rewinding part ? 600mm

Inner diameter of unwinding & rewinding part ? 76 mm

Main motor 2.2KW

Total power ≈14KW

Total weight ≈6700KG

Machine dimension ≈4300*1800*2600mm
