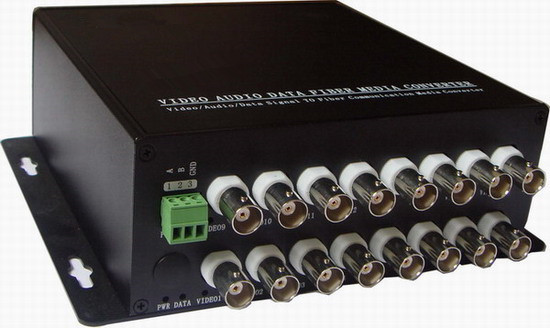

AHD Fiber Converters can simultaneously transmit1~16ch AHD +1 ch RS485(optional) over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H, AHD-M, AHD-L. Lossless non-compression real time transmission.
Features
1.High definition, Lossless non-compression real time transmission
2.Auto recognition of input video format as AHD-H, AHD-M, AHD-L
3.UPnP, easy installation
4.Constant input optical power, and large dynamic range , no electrical or optical adjustments required .
5.Industry-grade of operating temperature from -30℃to 75℃
6.Stand-alone type or card-type installed in 19'' 4U rack-mount chassis.
7.Optical interface: FC,ST, SC (optional)
Specifications
Opitcal:
|
Wavelength
|
1310nm&1550nm
|
|
Output Power
|
-6~-2dBm
|
|
Rx sensitivity
|
-22dBm
|
|
Transmission Distance
|
9/125u single mode, 20km
|
|
Optical connector
|
FC, ST, SC (optional)
|
Video:
|
Number of Channels
|
1~16
|
|
Input/output impedance
|
BNC 75Ω (unbalance)
|
|
Standard video input/output voltage
|
1.0Vp-p
|
|
Video Bandwidth
|
45MHz
|
|
Sampling Bandwidth
|
10bit
|
|
Sampling Frequency
|
108MHz
|
|
Rise and Fall time
|
<0.8ns
|
|
Optical Signal Intrinsic Jitter
|
<0.2 UI
|
|
Differential Gain
|
< ±1.5%
|
|
Differential Phase
|
< ±1°
|
|
Connector
|
BNC
|
Data:
|
Data protocol
|
RS485
|
|
Data rate
|
0~200 Kbps
|
|
Error rate
|
< 10-9
|
|
Connector
|
Standard terminal lead
|
Other
|
Power
|
DC5V 2A
|
|
Power Consumption
|
≤5W
|
|
Temperature
|
-30oC ~75oC
|
|
Humidity
|
10%~90% RH
|
|
Unit Weight
|
1~2ch:0.8kg
4~8ch:1.5kg
16ch:8.5kg(pair)
|
|
Dimension
|
1~2ch104x104x28MM
4~8ch:175mm×154mm×30mm
16ch:480x256x50mm
|
|
Package size
|
30×22×9cm
|
|
Installation
|
Wall mount
|
|
MTBF
|
≥ 100000Hours
|
|
Case material
|
Aluminum
|
