Quick Details
- Model Number: JM-CVI
- Brand Name: JiaMinAVTech
- Wavelength: 1310nm&1550nm
- Transmission Distance: 9/125u single mode, 20km
- Fiber connector: FC,ST,SC
- Video Bandwidth: 45MHz
- Case material: Aluminum
Specifications

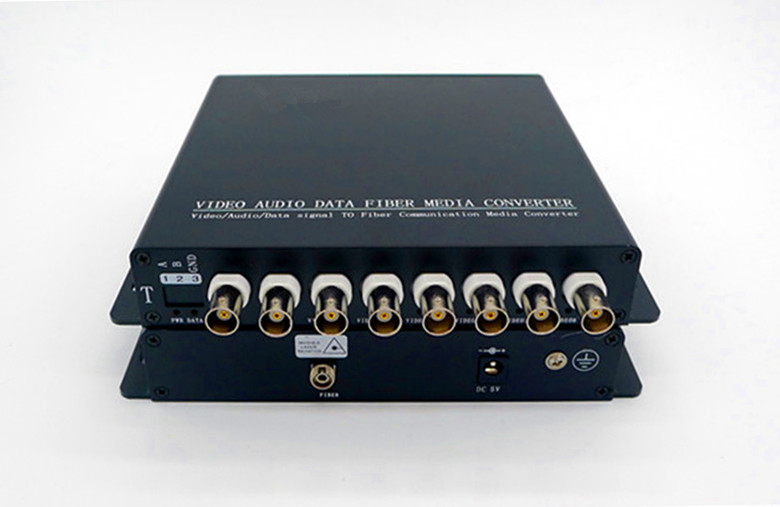

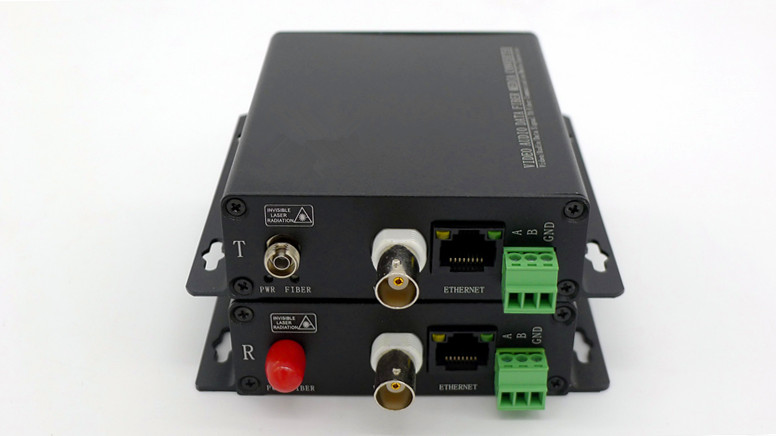

HDCVI to Fiber converter support 1~16CH 720p / 25,720p / 30,720p / 50,720p / 60,1080p / 25,1080p / 30fps CVI coaxial analog HD video with RS485 Data/Ethernet/audio over a single fiber optical fiber , using self-developed non-compressed digital photoelectric conversion technology, , to achieve megapixels level analog HD video point to point highly and reliably transmission over fiber without delay.
HDCVI to Fiber converter feature:
1. aluminum case wall-mounted or plug-mounted 2U/4U chassis
2. Support 25/30/50 / 60fps 720P & 25 / 30fps 1080P
3. All interface uses three anti-static, lightning protection
4. Wide optical dynamic range and advanced adaptive technology, transmissiondistance up to 20KM
5. The surface mount devices, to ensure that products are small, high stability, high reliability
6.Low electromagnetic interference (EMI), radio frequency interference (RFI)as well as common ground loop interference
7. Rich LED indicator diagnostic indication
8. Plug and Play, hot swappable
9. Small size, low power consumption, anti-interference ability, high fidelity, etc.
10. Industrial wide temperature range (-30 oC ~ + 75 oC), to adapt to the more environment
11. support user customization and OEM
HDCVI to Fiber converter Application:
1. Urban Traffic Monitoring System
2. public security, safe city monitoring system
3. highway security, charging system
4. buildings, campus monitoring network
5. Industrial monitoring (airport, chemical, iron and steel, petroleum, railway, water conservancy, mining, etc.)
6. Military monitoring (storage, frontier defense, guard, national defense, etc.)
7. Power oilfield, television program transmission system
8. Gymnasium (live video, audio transmission)
Specifications
Opitcal:
Video:
Wavelength
1310nm&1550nm
Output Power
-8~3dBm
Rx sensitivity
-25dBm
Transmission Distance
50/125u multimode,1km
62.5/125u multimode,500m
9/125u single mode, 20km
fiber connector
FC,ST,SC (optional)
Data:
Number of Channels
1,2,4,8,16
Input/output impedance
75Ω
Physical Port
BNC port
Standard video input/output voltage
1.0Vp-p
Video Bandwidth
45MHz
Sampling Bandwidth
10bit
Sampling Frequency
108MHz
Rise and Fall time
<0.8ns
Optical Signal Intrinsic Jitter
<0.2 UI
Differential Gain
< ±1.5%
Differential Phase
< ±1°
Audio
Data protocol
RS485
Data rate
0~200 Kbps
Error rate
< 10-9
Connector
Standard terminal lead
Ethernet:
Input/output Impedance
600ohm(unbalance)
Max input/output voltage
3.0Vp-p
Frequency Response
10 Hz~29kHz @±3dB
SNR
> 70dB
Connector
Standard terminal lead
Number of Channels
1~16
Other
Work mode
Full duplex/half duplex
Data Rate
10/100Mbps(AUTO)
connection terminal
RJ45
Power
1~8CH: DC5V 2A; 16CH: AC90~240V
Power Consumption
≤5W
Temperature
-30oC ~75oC
Humidity
10%~90% RH
Unit Weight
1CH:0.75kg (pair);2~8CH 1.5KG;16CH:705KG
Dimension
1~2CH:104mm×104mm×28mm;
4~8CH:175X154X30MM;
16CH:480X256X50MM
Package size
1~2CH23×19×9cm;4~8CH:30X22X9CM;16CH:54X40X18CM
Installation
Wall mount
MTBF
≥ 100000Hours
Case material
Aluminum
