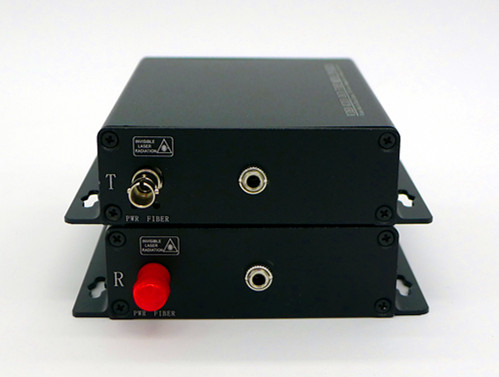

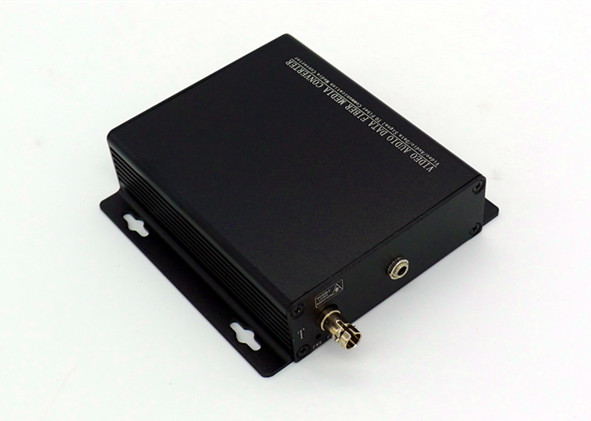

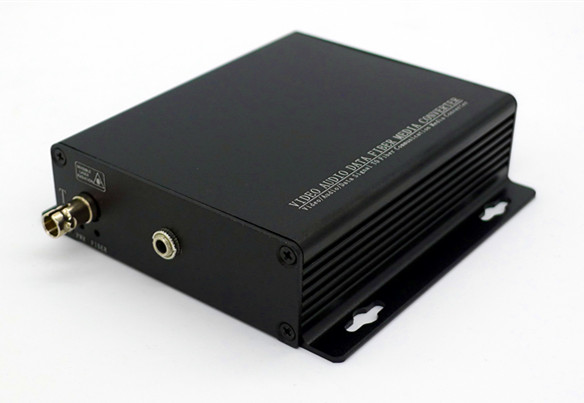

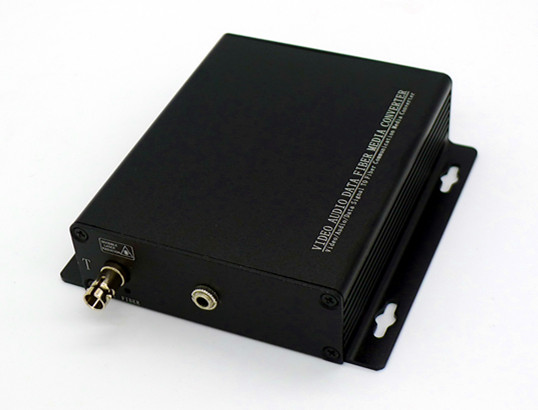

3.5mm stereo audio over fiber extenders for 1 stereo audio signal remote transmission

FOB Price: 55.00 - 80.00 USD/Pair
Supply Ability: 100,000 Pair/Pairs per Month
Shipping: 2~10days after payment
Payment Terms: T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: 1pair power adaptor,1 optic transmitter,1 optic receiver,1User's Manual

Quick Details

  • Model Number: JM-1SA-3.5MM
  • Brand Name: JiaMinAVTech
  • Connector: 3.5MM Stereo
  • Operating Temperature:: -20~75 Celsius
  • Weight:: (include Transmitter & Receiver ) 0.8kg
  • Power: DC 5V@2A
  • Color: black
  • warranty: 2years

Specifications

3.5mm stereo audio over fiber extenders transmit 1 or multiple 3.5mm stereo signals over a single / multi-mode fiber . Stereo audio source input at the transmitter end, transmitted through the optical fiber and output at the receiver side , receiver connect powered speakers or the amplifier driving the speaker, using 24bit digital audio coding system indicators to meet or exceed Class A broadcast standardSpecifications

These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Features

? 24-Bit Digitally Encoded Audio

? Support Point-to-Point or Daisy-Chain connection

? Multimode Fiber transmit up to 4km without Optical Attenuation

? Single-Mode Fiber transmit up to 100km without Optical Attenuation

? No EMI, RFI, Cross Talk or Video Distortion and no ground loops

? LED Indicators for Instant System Monitoring

? Standalone or Rack Mount in FVC14 Chassis

? Produce according to customer's specifications, providing OEM





Specifications

Audio
Input/output Impedance 600ohm(unbalance)
Max input/output voltage 3.0Vp-p
Frequency Response 10 Hz~29kHz @±3dB
SNR > 70dB
Connector 3.5mm Stereo


Electrical & Mechanical
Input Power Requirements: DC 5V@2A
Power Adapter: AC 900V~240V
Power Consumption: < 3W
Stand-Alone Dimensions: 104mm × 104mm × 28mm
Shipping Weight: (include Transmitter & Receiver ) 0.8kg


Environmental
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours


Connection diagram:

dimension:
