YA Lined Slurry Pump

FOB Price:	1,500.00 - 5,000.00 USD/Case
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	General

Quick Details

Application: miningcoalgold
Pressure: High Pressure
Fuel: Gasoline
Standard or Nonstandard: Standard
Power: Electric
Usage: Water
Structure: Single-stage Pump
Theory: Centrifugal Pump
Model Number: 8/6E-YA

Specifications

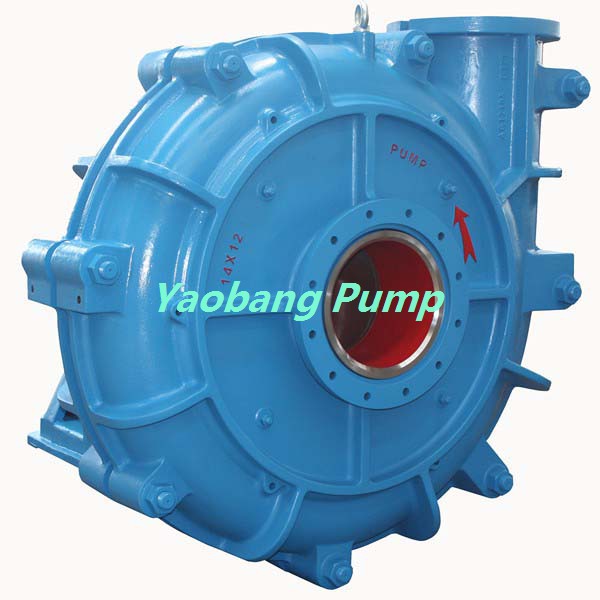

YA series Centrifugal Slurry Pump
YA series Centrifugal Slurry Pump is a end-suction, split-case, centrifugal slurry pumps, it is suitable for the poor environment on the mine. 27% chrome white iron or rubber wetted parts make the pump long life, and the simple structure make the pump maintenance and liner replacement easily.YL series slurry pump designed for rugged duties while offering higher efficiencies, it is a combination of the proven YA unique features plus higher efficiency impeller at an attractive cost.
Specific Information as follows:
Outlet Dia: 1" -16"
Head up to 240ft(73m)
Flow rate 22,000gpm(5,000m3/h)
Casing sufferred pressure 300psi(2,020kpa)
Model Meaning:
8/6E-YA 8: Outlet Dia is 8 inch 6: Outlet Dia is 6 inch
YA: Yaobang pump horizontal centrifugal slurry pump
E: Frame type
Seal type: gland seal, mechanical seal, expeller seal The outlet can be spaced by 45degree according to requirement, and it can be installed by rotating eight different angles. The liners material can be A07 A05 A33 A49 A51 , R55 R08 R33 etc Drive types: DC ZV CV CR Slurry pump working temperature can be up to 120 degree
Applications:
Chemical slurries—ash handling—paper&pulp—fine sand—building material—cyclone feed—mineral process—tailings—coal washing—copper—power generation—fertilizer
After sales service
If necessary, we would arrange the engineer to the pump working place.
