| Export Markets: | Southeast Asia, Africa, Mid East |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude |
Quick Details
- Dimensions (L x W x H) (mm): 10745x2496x3406
- Model Number: ZZ3317N3867W
- Brand Name: HOWO
- Gross Vehicle Weight: 35000
- Engine Capacity: > 8L
- Fuel Type: Diesel
- Emission Standard: Euro 2
- Transmission Type: Manual
- Condition: New
- Horsepower: 351 - 450hp
- Capacity (Load): 51 - 60t
- Drive Wheel: 8x4
Specifications

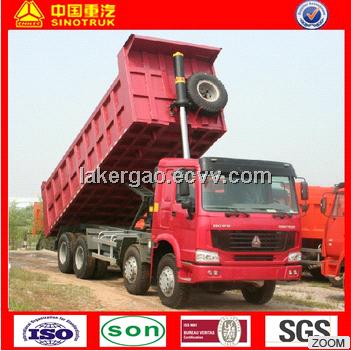

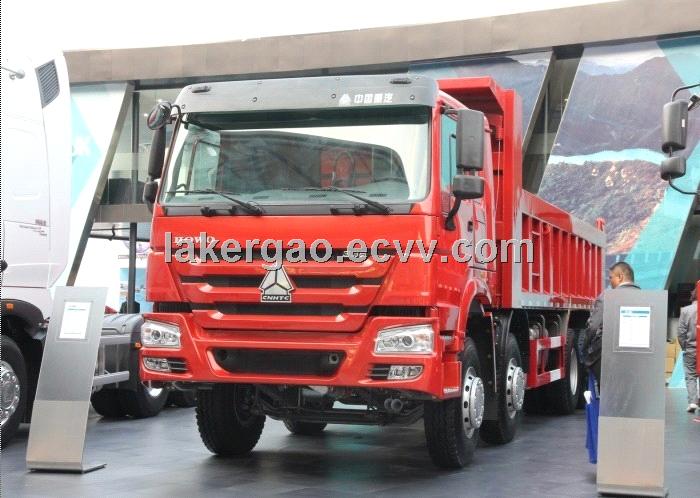

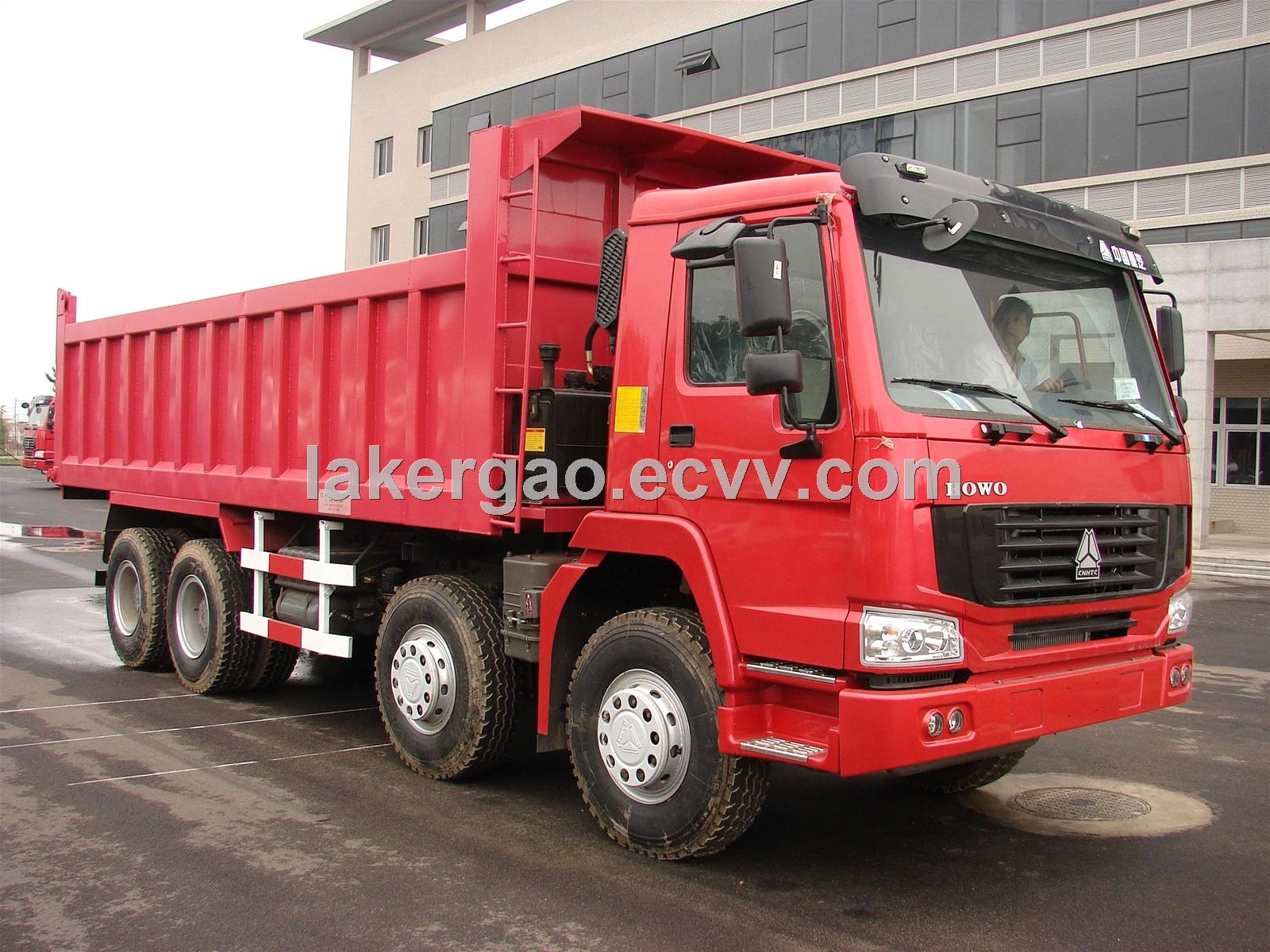

ZZ3317N3867W Howo 8x4 Dump Truck, 371hp, Hyva,27m3
ZZ3317N3867W,howo 8x4 Dump Truck, 371hp, Hyva,27m3
ZZ3317N3867W, HOWO 8x4 Dump Truck, 371hp, HYVA, 27m3
Specification:
| Brand | HOWO | |||||
| Model | ZZ3317N3867W | |||||
| Drive type | 8x4, 12 Wheels | |||||
| Left Hand Drive, Option: Right Hand Drive | ||||||
| Engine | SINOTRUK 371hp, Euro II | |||||
| Clutch | Single- plate dry coil-spring clutch, hydraulically operating with air assistance | |||||
| Transmission | HW19710, 10 forward and 2 reverse | |||||
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |||||
| Front Axle | Rigid stud axle with double T-cross section; Loading capacity: 9000kg | |||||
| Rear Axles | Pressed axle housing with axle loading capacity 2x16000kg | |||||
| Chassis |
Frame: U-profile parallel ladder with section of 300×80×8 mm and reinforced subframe, all cold riveted cross members Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi-elliptic leaf springs and bogie spring Fuel tank: 300 L capacity, with locking fuel cap Spare wheel carrier: with one spare tire |
|||||
| Steering | ZF8098, hydraulic steering with power assistance, Ratio: 26.2 | |||||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS |
|||||
| Wheels & Tyres |
Rims: 8.5-20, 10 hole-steel Tires: 12.00-20 Option: 11.00-20 11.00R20 12.00R20 12.00-24 |
|||||

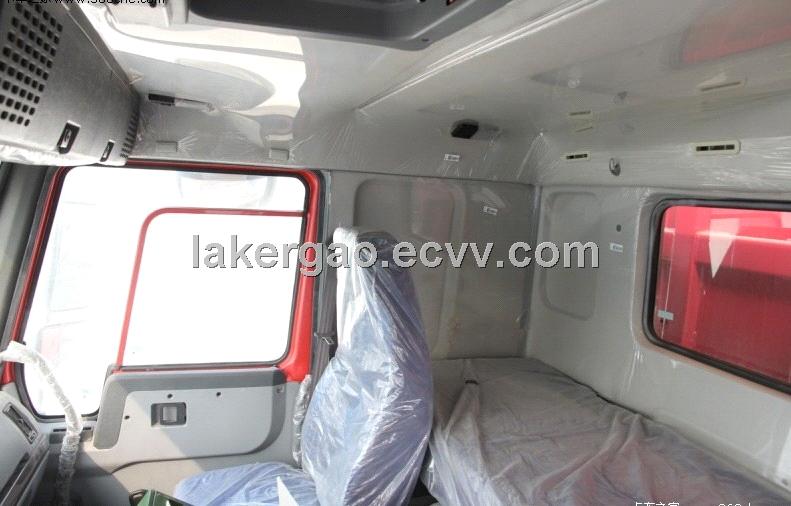

| Driver's Cab | Long cab, all steel forward control, 70o hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, single berth with 4-point support full floating suspension + shock absorbers with transverse stabilizer, safety belt, air conditioner, adjustable steering wheel, adjustable roof flap. | |||||
| Electrics |
Operating voltage:24V, negative grounded Starter: 24V, 7.5Kw Alternator: 28V, 1500W Batteries: 2×12V, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp Option: 180Ah |
|||||
| Overall Dimensions | 10745×2496×3406 (mm) | |||||
| Cargo body Dimensions | 7800x2300x1500 (mm) | |||||
| Lifting System: | Front Lifting; Option: HYVA | |||||
| Thickness of Bottom Plate | 10 (mm) | |||||
| Thickness of Side Plate | 8 (mm) | |||||
| Dead weight: | 15480kg | |||||
| Loading capacity | 45000kg | |||||
| The manufacturer reserves the right of technical alteration/change for better improvement without prior notice! | ||||||
