PVC Double Screw Extruder

FOB Price: 15,999.00 - 999,999.00 USD/Set
Supply Ability: 100 Set/Sets per Year
Shipping: fob,cif,cfr,daf,exw...shanghai,ningbo,qingdao...
Payment Terms: L/C, T/T
Update Time: 2018/8/3
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: wooden case, nude,carton box...

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certification: CE.ROHS,CCC,...
  • Weight: 1000kg
  • Dimension(L*W*H): 23000mm*2500mm*3000mm
  • Power(W): 55kw
  • Voltage: 380V,50Hz,3 phase...
  • Model Number: 65-132....
  • Brand Name: win-trust
  • Automatic Grade: Full-automatic
  • Screw Design: Double-screw
  • Plastic Processed: PVC
  • Application: Profile
  • Condition: New
  • PVC Extruder Machine: PVC Pipe Extruder

Specifications

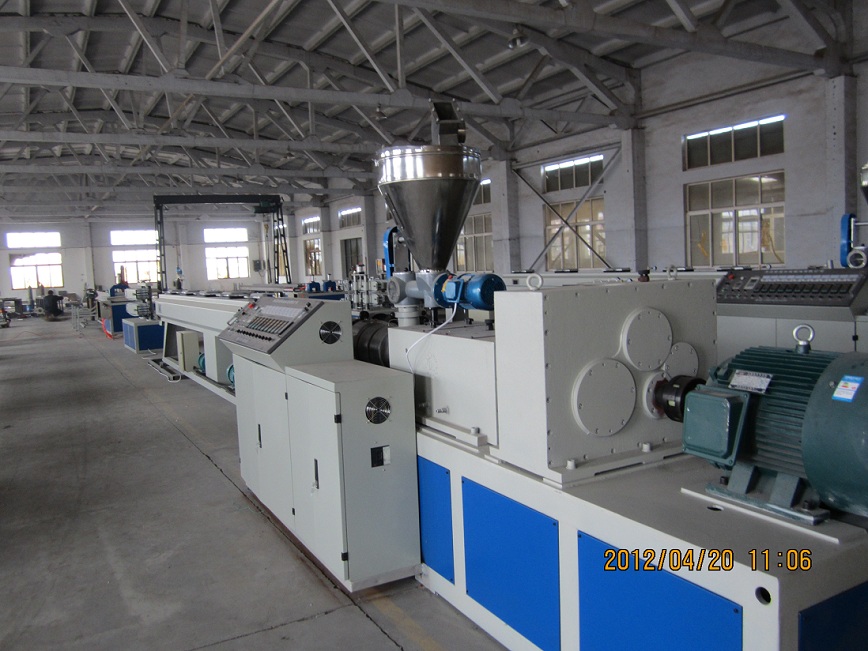

 PVC Double-screw Extruder Machine production line
I.
The host part:    WJSZ-51 * 105 conical twin screw extruder      1 set

1.   The main driving motor   1 sets   power: 22Kw

2.   hardened gear box 1set

3.The distribution of box1set

4.  screw, barrel 1 sets of material: 38CrMoALa after nitriding nitriding depth: 0.4-0.7mm

5.Vacuum pump    1 set     models SZZ-4    power 1.5Kw

6.The cooling fan    3set   models DF-2   power of 6 x 0.25Kw

 7. Alu.Die casting made  heater 4 groups of homemade special power 20Kw

 8.   hopper           1set         home-made special

9.  the rack part:   using high grade square tube production

II. Electronic parts: host operating control cabinet

1.    temperature control meter intelligent temperature control instrument

2.  The contactor       CHINT products

 3.Relay               CHINT products

 4.   the power indicator button of CHINT products.

5.The converter (VVVF)           1 sets of power: 22kw

6.  The converter (feeding)         1 sets of power: 0.75kw

 7. an electric control cabinet: the appearance of a piano type, beautiful and generous


The production quantity of extrusion 100-180kg



More Model Available.
WJSZ-65 * 132 conical twin screw extruder
The production quantity of extrusion 200-260kg

WJSZ-80 * 156 conical twin screw extruder 1set

The production quantity of extrusion 400-450kg
