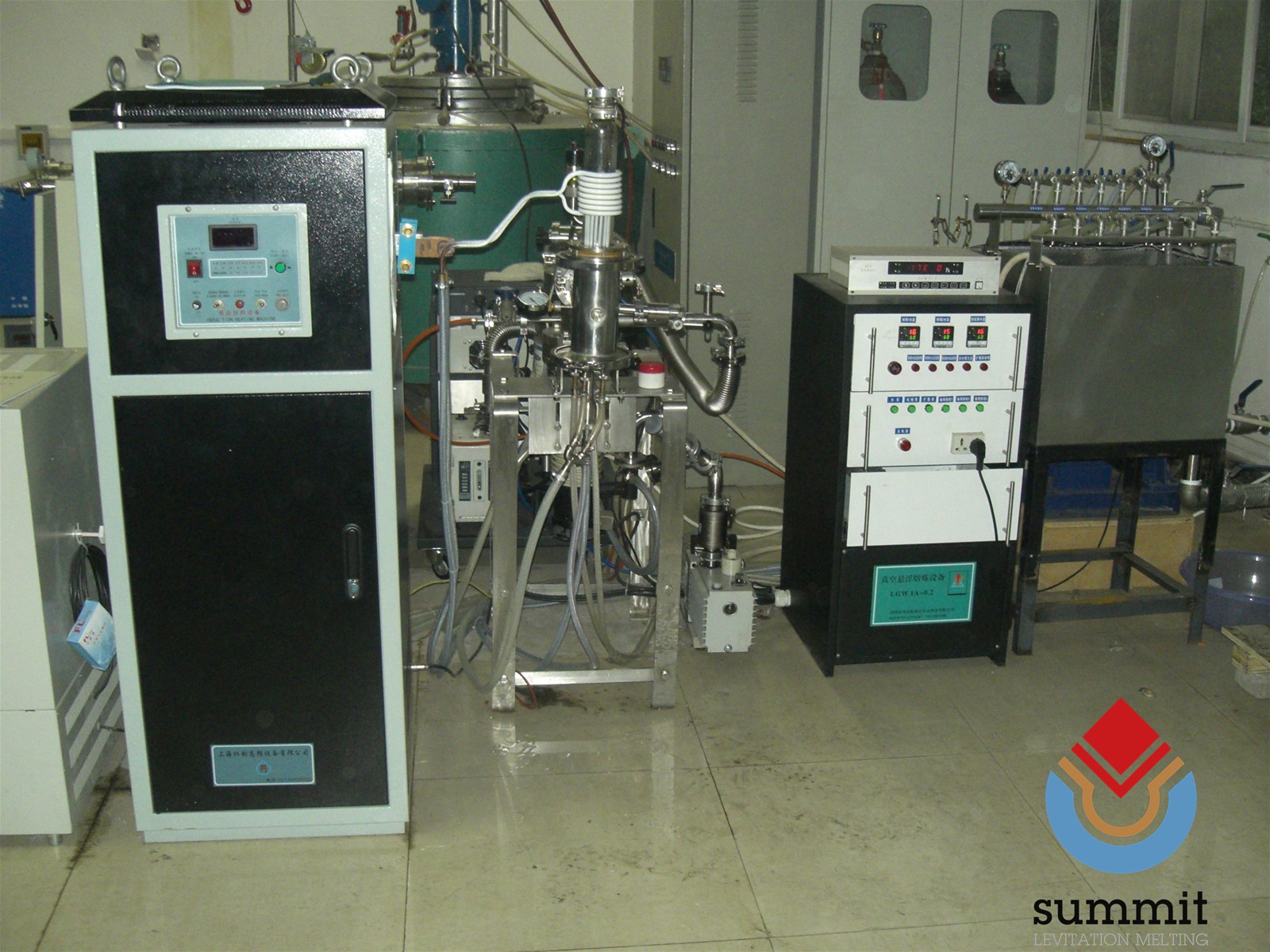

Vacuum Levitation Melting Furnace for Lab

Specifications

Vacuum Cold Crucible Induction Levitation Melting Furnace is an advanced melting,refining and alloying technology. It eliminates the crucible contamination,eliminates the gas and inclusion contamination,provides the strong electromagnetic force stirring to the melt, stable and long time high melting temperature achiveable,etc,thus it is ideal to be used for researching and producing reactive metals & alloys,refractory metals&alloys, ultrapure metals & alloys,etc.

Specific Application Areas:
1. Reactive Metals and Alloys
i.e. RE metals & alloys, Ti & Ti alloys precision casting, Uranium earth, Alkaline- earth metals, etc
2. Ultrapure Metals and Alloys
i.e. Ultrapure sputtering target and coating materials, Solar polycrystalline silicon, Ultrapure metal 6N~8N,etc
3. High Grade Alloys and Intermetallic Compound
i.e. Rare earth giant magnetostrictive material, Functional materials, Mircoalloy materials;
4. Refractory Metals and Alloys, Precious Metals and Alloys
i.e. Cr, Zr, Hf, V, Nb, Mo, Ta, Pt, Rh, Ir and alloys, etc
5. Advanced Materials Research
i.e. Preparation of high grade ultrapure metals, alloys and intermetallic compounds and with more accurate and homogeneous composition, remove impurity or other elements Interference, and so on.

Main Technical Parameters:
(1)Main Structure: Furnace Chamber, Cold Crucible, Induction Coils, Power, Operating system, Vacuum System, Cooling System, Control System, Casting System, Mould
(2)Ultimate Vacuum:6.7×10-3 Pa - 6.7×10-6 Pa
(3)Melting Temp.: 2000Celsius~ 3100Celsius
(4)Power: Supersonic frequency power;
(5)Smart Alarm and Safe Protection measures:
Self cooled cold crucible protection, Power protection, Furnace protection, and so on;
(6)Casting System:Tilt casting, Bottom-Pouring, Suction casting, Centrifugal casting, customizable;
(7)Cooling System: Closed circuit cooling circulating water system consists of pure water, High pressure pump, Water chiller, Water storage tank, and so on
(8)Operating System: Pneumatic + Power driven, customizable;
(9)Control system: PLC + Touch screen or Infrared temperature measurement + computer programmed control, customizable;

Types:
1. Standard Types of Vacuum Cold Crucible Induction Levitation Melting Furnace:
Melting capacity 100g~50kgs

2. Special Types of Vacuum Cold Crucible Induction Levitation Melting Furnace:
Combined with different technologies like Titanium precision casting,zone refining,directional solidification, ingot draw continuous,etc.
