Huayi Refractory & Machinery Co., Ltd.
China Manufacturer with main products: Crushers, Ball Mills, Rotary Dryers, Magnetic Separators, Shaking Table, Spiral Chute, Flotation Machine, Refractory Materials |

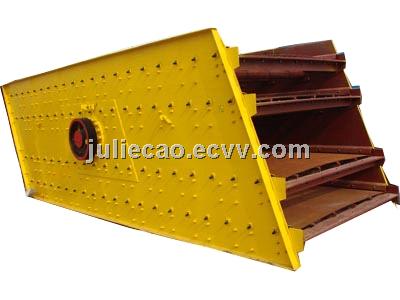

YK series Sand stone separation vibrating screen
| FOB Price: | 3,000.00 - 100,000.00 USD/Unit |
|---|---|
| Supply Ability: | 30 Unit/Units per Month |
| Shipping: | Qingdao; Tianjin; Shanghai port |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | in nude package, loaded into 20 feet or 40 feet container |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Certification: ISO9001:2000
- Weight: according to exact model
- Dimension(L*W*H): according to exact model
- Power(W): according to exact model
- Voltage: 380v; 440v; 415v
- Model Number: many models
- Brand Name: Huayi
- Application: Ore
- Type: Circular
- Condition: New
- name: vibrating screen
- application: coal mining, ore mining
- capacity: 1-800t/h
- delivery time: 30 days
- color: as customer demand
Specifications
YK Series Circular Vibrating Screen Overview
The vibrating screen moves in a circular motion with multiple layers and high efficiency. The vibrating screen is designed with the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing. It is manufactured with long material screen rifling and many screen specifications.
Circular Vibrating Screen Features
1. Ring groove rivet connection, advanced structure and excellent durability.
2. Designed with a simple structure, with eccentric block as excitation, strong vibrating force, low electricity consumption and low noise.
3. Uses small amplitude, high frequency and big angle structure which enables it to have high screening efficiency and great handling capacity.
4. Uses large clearance bearings
and is lubricated with thin oil. It causes little noise and has a long service
life.
Working Principle Of Vbrating Screen:
Vibrating screen uses
electric exciter as vibrating source, the material will be thrown around the
screen, at the same time doing forward sports, in order to achieve the
screening purpose. Material from the feeder evenly enters into the machine's feeding
inlet, with multilayer sieves to produce various of products and
unqualified products on the screen or under the screen, then discharging from
the outlet repectively. It can be used in the automatic production line.
Technical parameters of vibrating
screen:
Type
Wire
mesh
(mm)
deck
Installation
Slope
Max
Feed
Size (mm)
Process
Capacity
(m3/h)
Vibrating
frequency
(Hz)
Power
(kw)
Weight
(T)
Dimensions
L×W×H
(mm)
YK1545
1500×4500
1
15-20o
400
14-113
970
7.5
3.2
4460×2640×1990
2YK1545
1500×4500
2
15-20o
400
14-113
970
11
3.9
4970×3150×2720
3YK1545
1500×4500
3
15-20o
400
14-113
970
15
4.8
4970×3150×3210
4YK1545
1500×4500
4
15-20o
400
14-113
970
15
5.7
4870×3215×3520
YK1854
1800×5400
1
15-20o
400
20-163
970
7.5
4
5520×2810×2000
2YK1854
1800×5400
2
15-20o
400
20-163
970
15
5.2
5910×3490×3400
3YK1854
1800×5400
3
15-20o
400
20-163
970
22
6.8
5910×3490×3920
4YK1854
1800×5400
4
15-20o
400
20-163
970
22
8
5910×3490×4440
YK1860
1800×6000
1
15-20o
400
25-180
970
7.5
4.1
5860×2406×2404
2YK1860
1800×6000
2
15-20o
400
25-180
970
15
5.4
6136×2720×3292
3YK1860
1800×6000
3
15-20o
400
25-180
970
22
7.1
6136×2720×3681
4YK1860
1800×6000
4
15-20o
400
25-180
970
22
8.4
6136×2720×4154
YK2160
2100×6000
1
15-20o
450
42-250
970
11
5.5
6100×3750×2500
2YK2160
2100×6000
2
15-20o
450
42-250
970
22
6.6
6100×3850×3790
3YK2160
2100×6000
3
15-20o
450
42-250
970
37
8.8
6100×3850×4235
4YK2160
2100×6000
4
15-20o
450
42-250
970
45
11
6100×3850×4650
