Zhangjiagang Stark Import & Export Co., Ltd.
China Manufacturer with main products: Gas Detector, Particle Counter, Exhaust Gas Detector, Centrifuge |

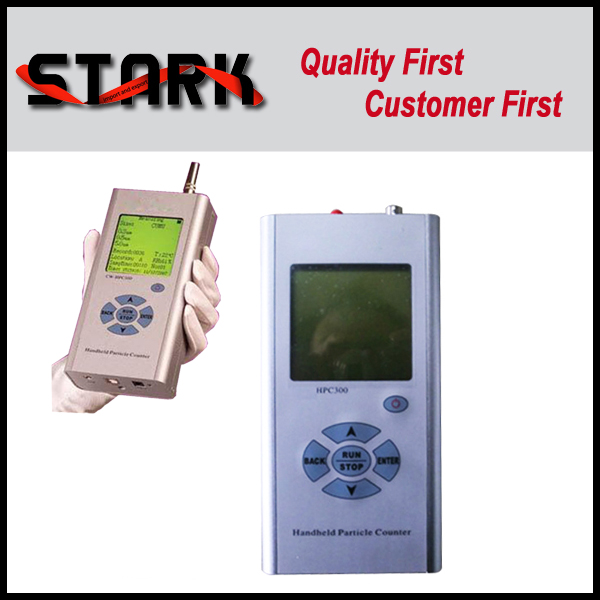

HPC300 portable dust particle counter with USB
| FOB Price: | 1,200.00 - 1,700.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | The cartons |
Quick Details
- Model Number: HPC300
- Brand Name: STARK
- keyword: dust particle counter
- title: HPC300 portable dust particle counter with USB
- name: portable dust particle counter
- Particle size: 0.3,0.5,5um(0.3-10um)
- Power: Electronic,lithium-ion battery
- Weight: dust particle counter< 800 grams (including battery)
- packge: Standard export carton for dust particle counter
- Output interface: dust particle counter with USB ,RS232
- factory location: 2 hours from shanghai
- certificate: dust particle counter with CE
Specifications
SDK HPC300 portable dust particle counter with USB
Product introduction
SDK HPC300 portable dust particle counter with USB can be used in measuring particles suspended in the air in clean environment applications such as microelectronics, fine mechanics, optics, pharmaceutical,medical device, food processing, aerospace as well indoor/outdoor air quality.
The SDK-HPC300 dust particle counter was designed in the USA and is in compliance with the international standards (JIS B9925:1997 and ISO14644-1) and has CE certification. The HPC 300 dust particle counter is very unique compared to other manufacturers in the market; it features high sensitivity, multiple functional capabilities, and is slim,lightweight and very user friendly.
Advantage
HPC300 portable dust particle counter with USB
1.Counting modes with cumulative differential /concentration /average / auto-repeat / timer
2.Up to 1500-data(450 sets)internal memory
3.Excess-count-limit warning USB interface for data downloading and upgrading
4.USB interface for data downloading and upgrading
Specification
|
Light Source |
Laser diode (>100,000 hoursMTBF) |
|
Sensitivity |
0.3μm |
|
Size Range |
0.3μm~10μm |
|
Channels |
All channels are configurable by users (size selections from 0.3μm, 0.5μm, 0.7μm, 1.0μm, 2.0μm, 2.5μm, 5.0μm and 10μm |
|
Counting Efficiency |
50±20% @0.3μm 100±10% (0.5μm) |
|
Coincidence Loss |
<5% @70,000 Particles/Liter or <5% @2,000,000 particles/ft3 |
|
Zero Count |
<1 count per 5 minutes |
|
Flow Rate |
2.83 L /min (0.1cfm) |
|
Sampling Time |
1 sec ~ 59 min and 59sec (User defined) |
|
Count Limit Warning |
FED STD 209E (Class 1 ~ 100,000) or ISO 14644-1 (Class 2 ~ 9) |
|
Measurement |
Single/repeat/Average |
|
Error Indications |
Count limit, loss of laser power, out of flow calibration (>±5%), insufficient battery |
|
Interface |
USB, RS232 |
|
Internal Memory |
1500 measurement data (450 sets) |
|
Power |
Li-ion polymer rechargeable battery (7.4V/2800mAH) or 9VDC AC Adapter (100~240V input) |
|
Max. Operating Time |
Continuous operation > 5 hours with Li-ion battery |
|
Dimensions |
180 (H) ×93 (W) × 48 (D) mm |
|
Weight |
< 950 grams (including battery) |
|
Environmental Conditions |
Operating: 5 ~ 45°C, < 90%RH Storage: -20 ~ 65°C, < 90%RH |
|
Accessories |
AC adaptor, isokinetic probe, USB data cable, data download software (CD), zero-count filter, digital temperature and humidity sensor probe, mini printer, printer cable, tripod, calibration certificate |
