Hydraulic shearing machine

FOB Price:	5,000.00 - 120,000.00 USD/Set
Supply Ability:	15 Set/Sets per Week
Shipping:	within 20 days after deposit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Extra Services: Machining
Automation: Automatic
Power: Hydraulic
Material / Metal Processed: Stainless Steel
Raw Material: Steel Bar
Machine Type: shearing machine
Condition: New

Specifications

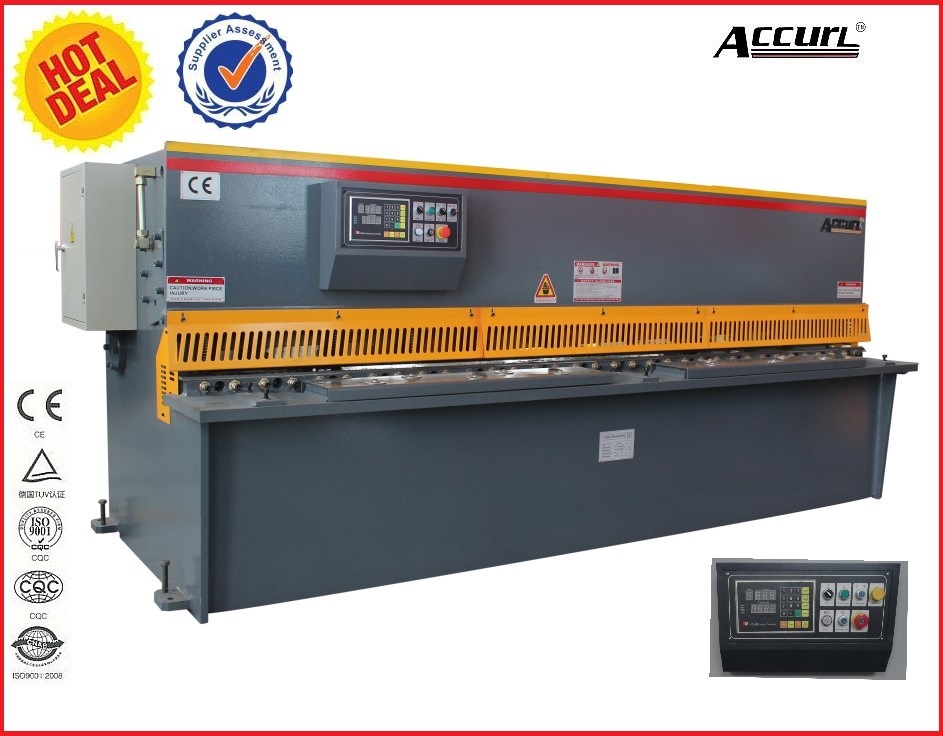

CNC Hydraulic Guillotine Electric Shearing Machine/CNC Machine
Guillotine Shearing Machine
Features of guillotine plate shearing machine:

■ Totally European design, streamlined looking,Monoblock,The frame of this machine tool is welded construction with steel plate, and stress is eliminated by vibration. As a result, this forging machine features high strength, stable performance, easy operation and convenient maintenance.

■ As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.

■ Hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder

■ Stepless adjusting is available for the stroke of knife beam to promote the production on plate shearing

■ The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding

■ It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.

■ Motorized adjusting and manual adjusting for the back gauge

■ Cutting times of this machining tool are controlled by the time relay.

■ A set of standard blades.

■ Standard front support sheet frame.

■ Protection fence and the electric interlocker to ensure the safety of the operator.

■ The machine by the European Union CE certification and ISO quality system certification

Technical Specification:

Model	Cutting Thickness	Cutting Length	Cutting angle	Strength	Strokes	Main power	Weight	Dimension(LxWxH)
	(mm)	(mm)	(°)	(KN/CM)	(Spm)	(kw)	(kg)	L×W×H(mm)
QC12Y-4×2500	4	2500	1°30′	≤450	10	5.5	3800	3040×1610×1620
QC12Y-4×3200	4	3200	1°30′	≤450	10	5.5	5000	3840×1610×1620
QC12Y-4×4000	4	4000	1°30′	≤450	8	5.5	6500	4600×1700×1700
QC12Y-4×6000	4	6000	1°30′	≤450	5	7.5	11000	6460×2100×3200
QC12Y-6×2000	6	2000	1°30′	≤450	12	7.5	430	2540×1610×1620
QC12Y-6×2500	6	2500	1°30′	≤450	10	7.5	5000	3040×1610×1620
QC12Y-6×3200	6	3200	1°30′	≤450	9	7.5	6000	3840×1610×1620
QC12Y-6×4000	6	4000	1°30′	≤450	8	7.5	8200	4620×1750×1700
QC12Y-6×6000	6	6000	1°30′	≤450	5	11	16500	6480×2100×2300
QC12Y-8×2500	8	2500	1°30′	≤450	10	7.5	6000	3040×1700×1700
QC12Y-8×3200	8	3200	1°30′	≤450	8	7.5	7200	3860×1700×1700
QC12Y-8×4000	8	4000	1°30′	≤450	8	7.5	8800	4640×1700×1700
QC12Y-8×6000	8	6000	1°30′	≤450	8	11	18000	6480×2100×2350
QC12Y-10×2500	10	2500	1°30′	≤450	9	11	7300	3040×1700×1700
QC12Y-10×3200	10	3200	2°	≤450	9	11	8000	3860×1700×1700
QC12Y-10×4000	10	4000	2°	≤450	8	11	12050	4650×2100×2000
QC12Y-10×6000	10	6000	1°30′	≤450	5	15	24000	6500×2100×2300
QC12Y-12×2500	12	2500	1°40′	≤450	9	18.5	9000	3140×2150×2000
QC12Y-12×3200	12	3200	1°40′	≤450	9	18.5	10800	3880×2150×2000
QC12Y-12×4000	12	4000	1°40′	≤450	8	18.5	13000	4680×2150×2000
QC12Y-12×6000	12	6000	2°	≤450	5	18.5	29500	6900×2600×2700
QC12Y-12×8000	12	8000	2°	≤450	5	18.5	46500	9000×3500×3500
QC12Y-16×2500	16	2500	2°30′	≤450	9	18.5	11000	3140×2150×2000
QC12Y-16×3200	16	3200	2°30′	≤450	8	18.5	13000	3880×2150×2000
QC12Y-16×4000	16	4000	2°30′	≤450	8	18.5	16300	4650×2150×2200
QC12Y-16×6000	16	6000	2°30′	≤450	5	22	36000	6900×2700×2700
QC12Y-16×8000	16	8000	2°30′	≤450	5	22	75000	9000×3500×3500
QC12Y-20×2500	20	2500	3°	≤450	8	22	15800	3440×2300×2500
QC12Y-20×3200	20	3200	3°	≤450	8	22	18500	4150×2350×2700
QC12Y-20×4000	20	4000	3°	≤450	5	22	21500	4850×2600×2400
QC12Y-20×6000	20	6000	3°	≤450	4	22	47000	6700×3000×3000
QC12Y-25×2500	25	2500	3°	≤450	8	37	19000	3200×2700×2900
QC12Y-25×3200	25	3200	3°	≤450	5	37	23000	4200×2500×2600
QC12Y-30×2500	30	2500	3°	≤450	4	37	23500	3300×2900×3000
QC12Y-30×3200	30	3200	3°30′	≤450	4	40	26000	4200×2500×2600
QC12Y-40×2500	40	2500	4°	≤450	3	75	38000	3200×3300×3200
QC12Y-40×3200	40	3200	4°	≤450	3	90	49000	4300×3300×3000
