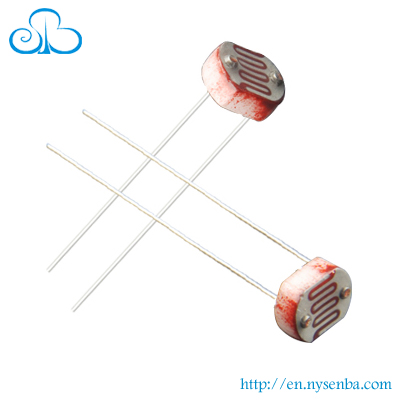

Dia.5MM 5-10kohm Cds Photoresistor (GL5516)

FOB Price:	0.02 - 0.10 USD/Piece
Supply Ability:	15,000,000 Piece/Pieces per Month
Shipping:	Within 1 day, EXW ShenZhen
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	2000PCS/Bag; 8000PCS/Box

Quick Details

Rated Power: 90mw
Package Type: Throught Hole
Technology: Ceramic Composition
Type: Photoresistor
Model Number: GL5516,GL5528,GL5527,GL5539,GL5549
Brand Name: Senba
Size: 5MM
Light Resistance: 5-10Kohm
Dark Resistrance: 0.5Mohm

Specifications

Photoresistor is a resistor which made of semi-conductor material, and the conductance changes with luminance variation. The photoresistor can be manufactured with different figures and illuminated area based on this characteristic. Photoresistor is widely used in many industries, such as toys, lamps, camera, etc.

Performances and Features
Coated with epoxy
Good reliability
Small volume
High sensitivity
Fast response
Good spectrum characteristic

Typical Applications
1. Camera automatic photometry
2. Photoelectric control
3. Indoor ray control
4. Annunciator
5. Industrial control
6. Light control switch
7. Light control lamp
8. Electronic toy

Type	Max voltage	Max power	Spectrum peak value	Light resistance	Dark resistance
GL5516	150vdc	90mw	540nm	5-10Kohms	0.5Mohms
GL5528	150vdc	100mw	540nm	10-20Kohms	1Mohms
GL5537-1	150vdc	100mw	540nm	20-30Kohms	2Mohms
GL5537-2	150vdc	100mw	540nm	30-50Kohms	3Mohms
GL5539	150vdc	100mw	540nm	50-100Kohms	5Mohms
