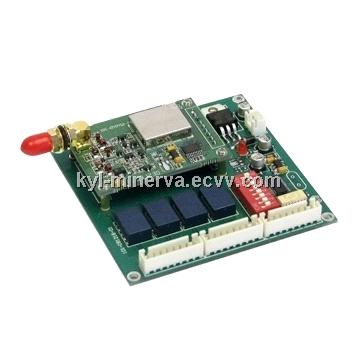

4-way Wireless ON-OFF I/O Module 9-15V 2-3 km 433MHz 500mW KYL-812

FOB Price:	65.00 - 80.00 USD/Pair
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

1.4W Modules

Price:3.50-4.00 USD/Piece

Min. Order:50 Pieces
Pulse heating technology for soldering electron...

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Model Number: KYL-812
Brand Name: KYL

Specifications

With 4-way ON-OFF DI and DO, KYL-812 can transmit the ON-OFF condition to a remote place wirelessly in time. When here the switch condition is ON, the output in the remote place is ON. When the local switch is OFF, the remote terminal is OFF.

The following is the schematic diagram of the ON-OFF transmission.

II, Features of KYL-812

1. Wireless ON-OFF condition transmits timely, easy to use.

2. 4-way coupler isolated input, high reliability and stability.

3. 4-way relay output. Load current is 30V, 1A

4. 4-way 5V active output.

5. Collocated with KYL-200L data module inside whose transmitting distance is about 2km-3km in open air, RF power: 500Mw, Receiving sensitivity: -120dBm.

6. Receiving current: 30mA;

7. Transmitting current: 300mA

8. Power supply: DC 9-15V

9. Dimension: 82mm*82mm

III. DIP switch definition

1. DIP8: Working mode options:

ON—input changes trigger transmitting mode. Once any of the 4 inputs condition change, the module will enter to transmitting mode.

OFF---fixed time transmitting. The master transmits all the 4 inputs condition to the slave every 1s or 2s (not real-time transmitting).

2. DIP7: Under fixed time transmitting mode, how to choose Master and slave equipment
ON—slave equipment, OFF—master equipment

3. DIP6: Collecting mode

Master will collect input condition or control output condition via sending command. Under collecting mode, the module cannot send data automatically which means input changes trigger transmitting and fixed time transmitting are both invalid in the condition

4. DIP5: ON No definition

5. DIP1-4: Channels choosing (maximum 16 channels)
