Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

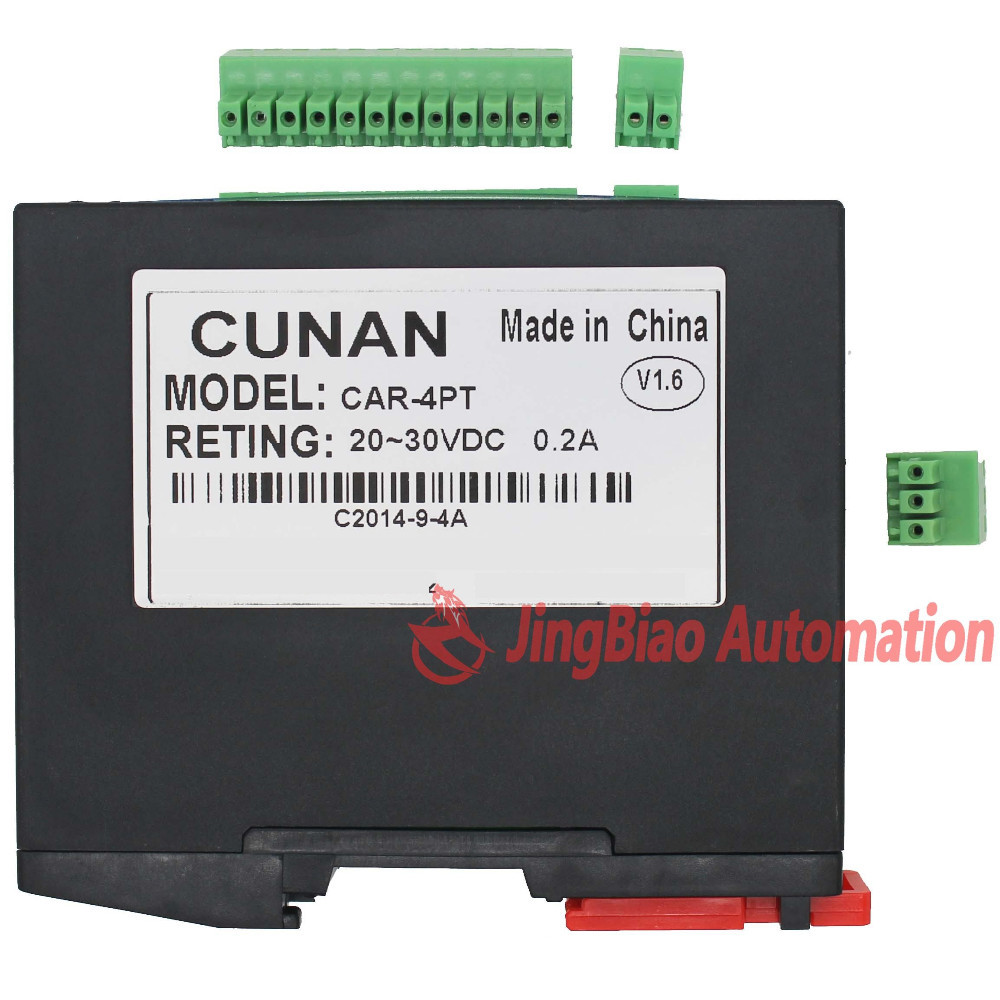

Model Number: CAR-4PT

Specifications

CAR-4PT series of modules

Module Features

Platinum RTD input, indexing number Pt100
4-channel input
Constant current output, not be affected by external environment changes
Resolution accuracy of 0.1 degrees
Using DC-CD isolated power mode, the signal acquisition is more stable and higher accuracy

This module contains the following features:

CAR-4PT 4-channel PT100 input

* Note: (* VA) expressed support both current and voltage, all analog channels can be modified range.

1.1 Module Introduction

CAR series module using RS485 communication port,Based on the standard Modbus protocol, with extensive use of significance. Including the extension of the model input and output modules, analog input module, analog output module, temperature acquisition module. EX Series PLC, MD series of text display, and other related equipment to support Modbus protocol has been widely used in temperature, flow, level, pressure and other process control systems.

1.2 Module size:

1.3 Full Power Isolation:Shape and size of CAR series of modules, please refer to the following chart (unit: mm): 98*86*17.5mm

CAR Series modules internal system are all isolated. And there are low and high pressure protection. Than the rated voltage, the system automatically power off. 1500V isolation test! Pay more attention to product quality!
Note: Isolated partial circuit diagram.
