Anhui Yufeng Warehousing Equipment Co., Ltd.
China Manufacturer with main products: Electric Vehicles, Electric Stacker, Electric Pallet Stacker, Electric Pallet Truck, Forklift, Electric Forklift |
Home
>Products Catalog > Electric Pallet Truck > All electric stand-up tractor driving type(24V) EPQ30B

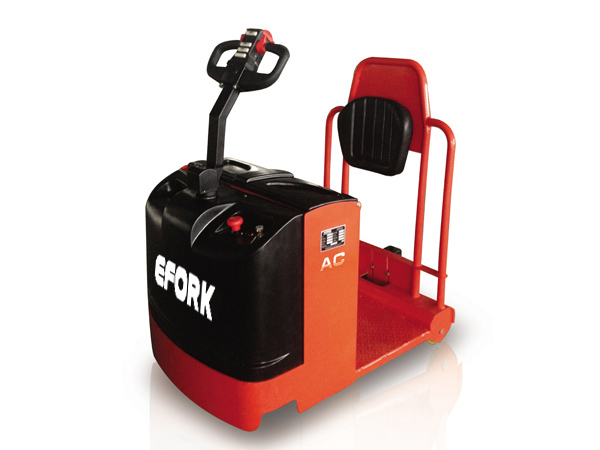

All electric stand-up tractor driving type(24V) EPQ30B
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | SHANGHAI PORT, 25 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Anhui in China |
| Packaging Details: | WOODEN PACKAGING |
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Warranty: one year
- Dimension(L*W*H): 1300*850*1400mm
- Model Number: EPQ30B
- Brand Name: EFORK
- Condition: New
Specifications
Specifications
|
Item |
All electric tractor driving type(24V) |
|
|
Operation type |
standing steer type |
|
|
Model |
EPQ30B |
|
|
Features |
Swiss quartz |
Electric |
|
Maximum traction weight kg |
3000 |
|
|
Weight |
Body weight (KG) |
~600 |
|
Wheels |
Tyre type |
polyurethane |
|
front wheel (mm) |
?215*75 |
|
|
Rear wheel mm |
?150*60 |
|
|
Dimensions |
The vehicle heightmm |
1400 |
|
Overall length mm |
1300 |
|
|
Overall width mm |
850 |
|
|
Travel speed Km/h |
4/6.7 |
|
|
Driver |
Battery V/Ah |
24/210 |
|
Charger V/A |
24/30 |
|
|
Drive Motor Kw |
1.2 |
|
Characteristics
Product description
1.Advanced EPS electronic power steering system -- light, low noise, more convenient. Women also can freely operate.
drive motor--maintenance free AC drive motor, large torque, strong climbing ability, big traction force, strong power, to ensure that the vehicle can drive in the uneven road and slope flat, longer service life of battery.
3.USA Curtis controller -- has stepless speed regulation and a number of automatic protection function.
4.External speed encoder -- repair conveniently, low cost.
the process of braking deceleration, the motor has brake function.
6.Electromagnetic brake realizes the guaranteed parking brake, can ensure that the vehicle can also safely parking on a slope.
Security
1.USA Curtis controller has many kinds of protection function such as over-voltage, over-current, low pressure, high temperature, short circuit and so on.
2.The vehicle has the function of self-made dynamic ramp, effectively avoid walking slope, more secure, reliable when using.
face of danger press the red emergency power-off switch, can quickly cut off the power supply of the vehicle, to ensure the safety.
Maintenance
1. The application of dustproof and waterproof AMP connectors and heat resistant corrosion resistant wire, prolongs the service life of electrical system.
2.Only by screwing off two screws, completely open the body, easy and convenient maintenance.
