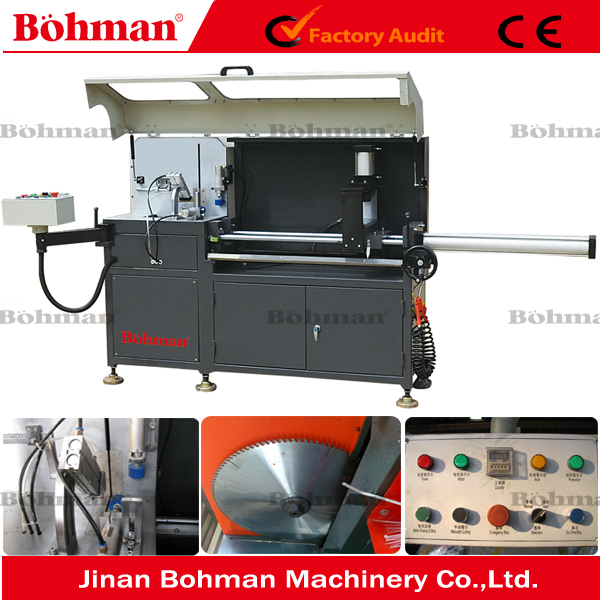

LJJA-500 Automatic Heavy-duty Aluminum Window Corner Connector Cutting Saw

FOB Price: 4,000.00 - 6,000.00 USD/Set
Supply Ability: 50 Set/Sets per Month
Shipping: 20 days after we receiving your deposit
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details: Plastic Film Package & Wooden Package

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 Year
  • Certification: CE
  • Weight: 800kg
  • Dimension(L*W*H): 2370x1650x1200mm
  • Rated Power: 2.2kw
  • Voltage: 380V50HZ
  • Model Number: LJJA-500
  • Brand Name: BOHMAN
  • Condition: New

Specifications

LJJA-500 Heavy Duty Corner Connector Automatic Cutting Saw



Production Description:



     Features:



       It has features of easy operation reliable performance advanced technique and

     convenient maintenance.

       Used for cutting of the corner profiles for aluminum doors and windows.

       Adopting computer-controlled system, and with automation level.

       Imported carbide saw blade is of high cutting speed, accurate processing and

     high efficiency.

       Linear bearing motion pair gave less resistance force and ensure high

     processing accuracy.

       Adopting automatic feeding system for the feeding device, it is with features of

     stability and reliability and high efficiency.

       Clamping and feeding process adopt pneumatic control, it is with features of

     stability and reliability and high efficiency.

       Once clamping can achieve continues cutting of six-meter corner profile.

       Control system with automatic counting function.

       The cutting length numbers will be saved automatically when cutting off

     electricity.




     Technical Parameters:



Power Supply

380V 50Hz

Cutting Motor Power

2.2kw

Motor Rotary Speed

2800r/min

Operation Air Pressure

0.5-0.8mpa

Auto-feeding Length

5-500mm

Blade Specification

?500*?30*4.4 mm

Blade W&H

135*300mm

Cutting Profile Surface Plane

0.10mm

Cutting Surface Verticality

0.1mm

Cutting Surface Roughness

Ra12.5μm

Outside Dimension

2370*1650*1200mm

Weight

800kg
