Reactor iron core cnc transvers cutting machine

Specifications

Reactor iron core cnc transvers cutting machine
1.CNC control, full automatic
2.Swing shear, online punching & notching, compact structure
3. Cutting speed 20-60 pcs/min

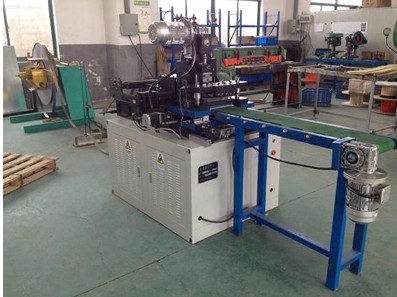

 Compact CNC Silicon Steel Cutting Machine
 Compact CNC silicon steel cutting machine with step-lap
Compact CNC silicon steel cutting machine is specially designed for cutting silicon steel coils into lamination strips used in transformer cores.

Compact CNC silicon steel cutting machine adopts swing shear cutting device which is similar to Georg swing shear cutting machine.

Compact CNC silicon steel cutting machine is a very small machine, main body is only about 2.2m long, including centering, notching, punching and cutting.

Compact CNC silicon steel cutting machine combines V-notching, hole-punching and mitre cutting togther, high automation, high efficiency. Usually one 8-hour shift can cut 1 ton lamination strips.

Compact CNC silicon steel cutting machine adopts Delta PLC, touch screen (HMI), inverter, servo motor and drive, high precision, good after-sale service.

Compact CNC silicon steel cutting machine adopts special carbide alloy for cutting blade and notching blade and punching tools as well. Life can be more than 2,000,000 times before grinding and more than 20 times grinds.

Compact CNC silicon steel cutting machine can cut different lamination strips:

Compact CNC silicon steel cutting machine with step-lap
