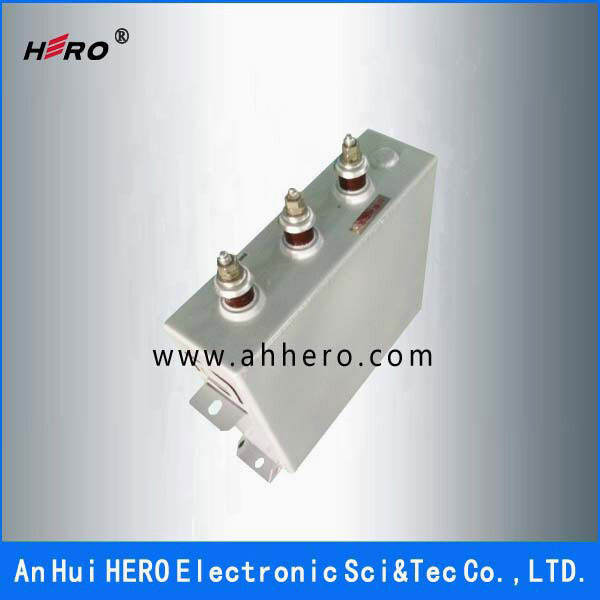

BSMJ low voltage shunt capacitor

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Specifications

Self healing 239uF 12kvar power factor capacitor

features

Small volume,light weight

Since using metalized polypropylene film as the dielectric and new materials,small volume,weight is only 1/4 and 1/5 of an old product;

Low dissipation

The actual value less than 0.1%,so capacitor own low energy consumption and fever less,low temperature,long working life,energy saving effect;

Excellent self-healing capability

Overvoltage caused by medium local breakdown can quickly self-healing, resume normal work,make the reliability greatly improved;

Safety

Inside pack self-discharge resistance and over pressure isolation device;

No leakage

This product adopts microcrystalline wax as impregnant,normal temperature is solid,melting point higher than 70℃,in use process not leak,prevent environmental pollution.

specification

No.	Type and specification	Rated voltage	Rated capacity	Rated frequency	Rated capacitance	Rated current	Height
1	BSMJ0.12-10-1	0.12	10	50	2211	83.3	220
2	BSMJ0.12-12-1	0.12	12	50	2654	100	260
3	BSMJ0.23-5-1	0.23	5	50	301	21.7	140
4	BSMJ0.23-10-1	0.23	10	50	602	43.4	220
5	BSMJ0.23-15-1	0.23	15	50	903	65.2	200
6	BSMJ0.23-30-1	0.23	30	50	1806	130.4	210
7	BSMJ0.4-20-3	0.4	20	50	398	28.9	220
8	BSMJ0.4-25-3	0.4	25	50	497	36.1	220
9	BSMJ0.4-30-3	0.4	30	50	597	43.3	270
10	BSMJ0.4-40-3	0.4	40	50	796	57.7	330
11	BSMJ0.4-50-3	0.4	50	50	995	72.2	330
12	BSMJ0.45-15-3	0.45	15	50	236	19.2	220
13	BSMJ0.45-20-3	0.45	20	50	314	25.7	200
14	BSMJ0.45-25-3	0.45	25	50	393	32.1	220
15	BSMJ0.45-30-3	0.45	30	50	472	38.5	250
16	BSMJ0.45-40-3	0.45	40	50	629	51.3	330
