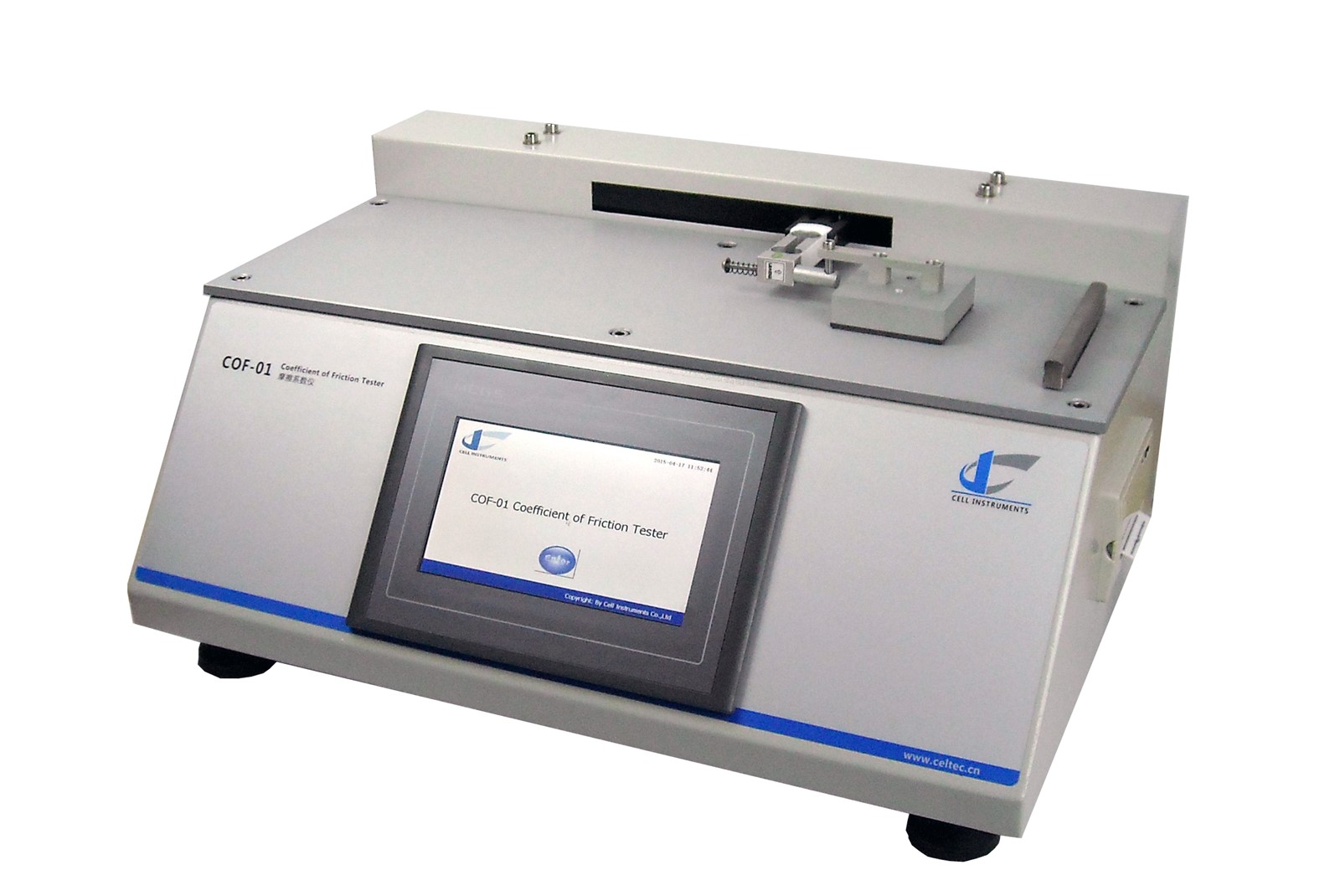

COF(Coefficient Of Friction) Tester

FOB Price:	1.00 - 2.00 USD/Set
Supply Ability:	999 Set(s) per Month
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	plywood carton

Quick Details

Usage: Plastic Testing Machine
Power: Electronic
Model Number: COF-01
Brand Name: Cell

Specifications

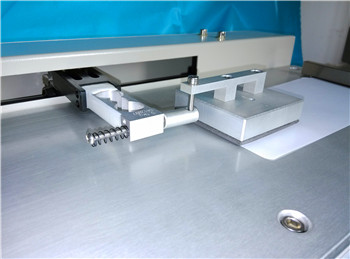

COF(Coefficient of Friction) Tester Measures the static and Kinetic COF of plastic films, sheets, rubber, paper and paper board, PP woven Bags, fabrics, metal-plastic composite belts for communication cables, convey Belts, wood, coatings, brake pads, windshield wipers, shoe materials and tire

COF(Coefficient of Friction) Tester Features
1. PLC control and touch screen operation
2. Real time display of test data, results and curves
3. both the static and kinetic coefficient of friction can be measured
4. in accordance with multiple international standards
5. Test results calculation, analysis and curve superposition
6. RS232 output and professional software(optional)
7. Microprint of easy printing of test result
COFCoefficient of Friction Tester
COF(Coefficient of Friction) Tester technical Specification
Load Cell 5/6N
Accuracy 0.5 F.S.
Stroke Max 150mm
Sled 200 g (Customization for other weight)
Test Speed 100mm/min (ISO), 150mm/min(ASTM)
Power AC 220V 50Hz ( can be changed to local requirement)
Dimensions 540mm(L)*380mm(W)*240mm(H)
COFCoefficient of Friction Tester
COF(Coefficient of Friction) Tester Standards
ASTM D1894, ISO 8295, TAPPI T816, GB 10006
